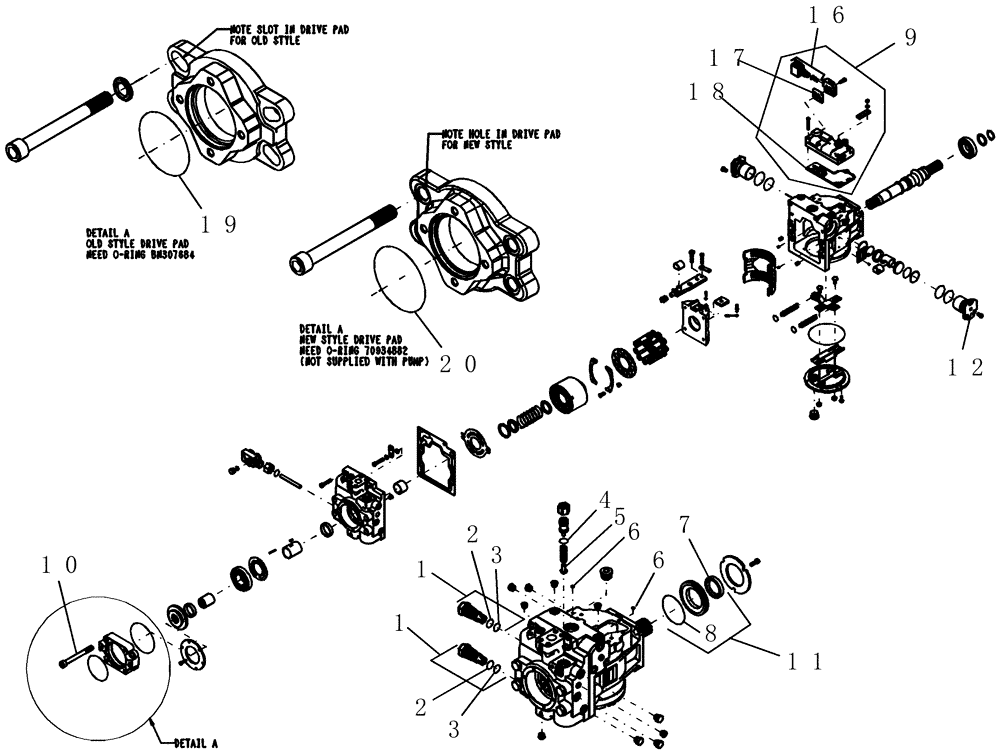

Запчасти Case IH 810 (07-009) - PUMP, 75CC, 90 SERIES, AUX-C Hydraulic Components

0

BN309564

PUMP

75Cc, 90 Series, Auxiliary C

1шт.

1

BN65540

VALVE

multi-function, 90S

2шт.

Includes 1 each of Refs. 2 and 3

1шт.

2

BN65541

O-RING

M/F Valve Upper

2шт.

3

BN65542

O-RING

M/F Valve Lower

2шт.

4

BN313401

O-RING

1шт.

5

BN313402

POPPET

CHARGE RELIEF

1шт.

6

BN313403

SCREEN

CONTROL FILTER

2шт.

7

BN65546

SEAL

Lip, Shaft 75 CC

1шт.

8

BN313405

O-RING

1шт.

9

BN306567

CONTROL

MDC 12V ON/OFF

1шт.

Includes 1 Each Of Refs. 10, 11, 12, 16, 17, & 18

1шт.

10

87267720

BOLT

M16 X 140, SHCS, 10.9

4шт.

11

87272008

SEAL

SHAFT

1шт.

12

87271997

FIP KIT

DISPLACEMENT LIMITER, Start Serial: 20114

1шт.

16

BN306569

SOLENOID VALVE

ON/OFF

1шт.

17

BN306570

GASKET

MANIFOLD

1шт.

18

BN68509

GASKET

Control Body

1шт.

19

BN307684

O-RING

SAE pad

1шт.

20

70934882

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

.103 X 4.737 158 7

1шт.
