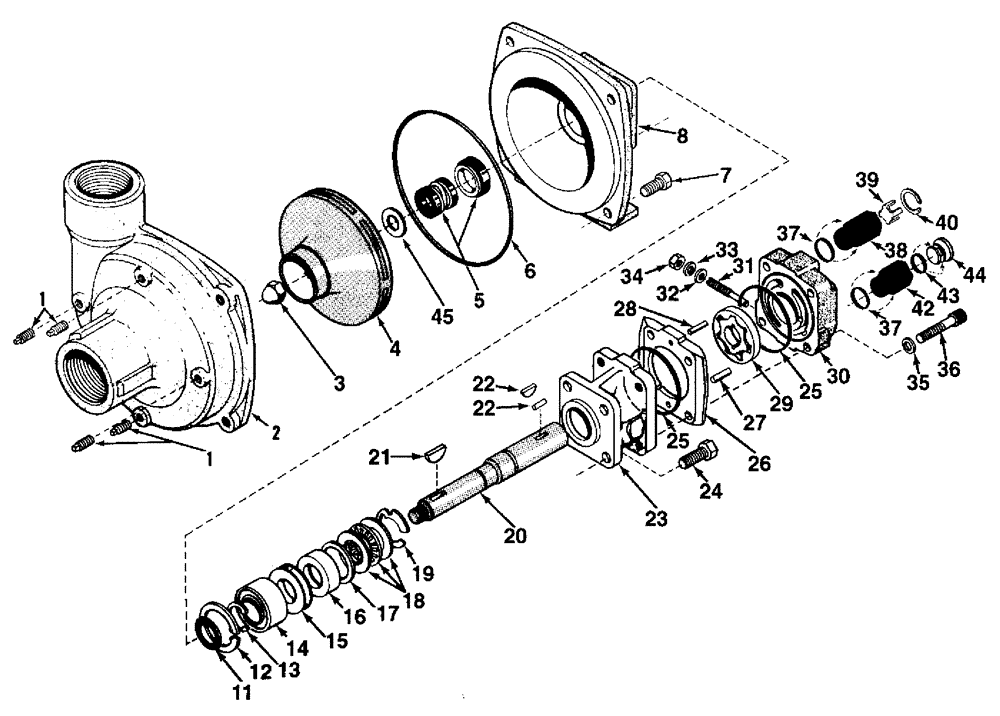

Запчасти Case IH 810 (07-008) - PUMP-HYPRO 2" INLET, 9304C-HM1C Hydraulic Components

0

BN68766

PUMP

Product, 2" Inlet, Complete

1шт.

0

BN312974

REPAIR KIT

SEAL AND GEROTER, PUMP

1шт.

Service Parts for Refs. 5, 6 and 45

1шт.

0

BN312973

SEAL KIT

SHAFT

1шт.

Service Parts for Refs. 14, 16, 32, 33 and 2 each of Refs. 25 and 37

1шт.

0

BN53769

REPAIR KIT

Gerotor - HM1 Model

1шт.

Service Parts for Ref. 1

1шт.

Includes Refs. 25, 26, 29

1шт.

0

BN53771

HYDRAULIC MOTOR

HM1

1шт.

Service Parts for Ref. 1

1шт.

0

NSS

NOT SOLD SEPARAT

LIQUID PUMP

1шт.

1

NSS

NOT SOLD SEPARAT

DRAIN/VENT PLUG

4шт.

2

NSS

NOT SOLD SEPARAT

PUMP CASING (VOLUTE) INCL. SS WEAR RING

1шт.

3

BN53693

NUT

Impeller #3

1шт.

4

BN312971

IMPELLER

(CAST IRON)

1шт.

5

NSS

NOT SOLD SEPARAT

MECHANICAL SEAL (VITON)

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

HEX HEAD CAPSCREW

4шт.

8

NSS

NOT SOLD SEPARAT

MOUNTING FLANGE

1шт.

11

NSS

NOT SOLD SEPARAT

SLINGER RING

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINING RING

1шт.

13

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

14

NSS

NOT SOLD SEPARAT

BALL BEARING

1шт.

15

NSS

NOT SOLD SEPARAT

SPACER

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL SPACER

1шт.

18

NSS

NOT SOLD SEPARAT

THRUST BEARING ASSY

1шт.

18a

NSS

NOT SOLD SEPARAT

THRUST BEARING

1шт.

Parts of Thrust Bearing Assy, for Ref. 18

1шт.

18b

NSS

NOT SOLD SEPARAT

THRUST BEARING RACES

2шт.

Parts of Thrust Bearing Assy, for Ref. 18

1шт.

19

NSS

NOT SOLD SEPARAT

SNAP RING

1шт.

20

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

21

NSS

NOT SOLD SEPARAT

WOODRUFF KEY

1шт.

22

NSS

NOT SOLD SEPARAT

ROLL PIN

1шт.

23

NSS

NOT SOLD SEPARAT

FRONT MOTOR BODY (INCL. MAIN BEARING)

1шт.

24

NSS

NOT SOLD SEPARAT

HEX HEAD CAPSCREW

4шт.

25

NSS

NOT SOLD SEPARAT

O-RING

2шт.

26

NSS

NOT SOLD SEPARAT

GEROTOR HOUSING

1шт.

27

NSS

NOT SOLD SEPARAT

DOWEL PIN

1шт.

28

NSS

NOT SOLD SEPARAT

DOWEL PIN

1шт.

29

NSS

NOT SOLD SEPARAT

GEROTOR

1шт.

30

NSS

NOT SOLD SEPARAT

MOTOR END PLATE (INCL. MAIN BEARING)

1шт.

31

NSS

NOT SOLD SEPARAT

BYPASS ADJUSTING SCREW

1шт.

32

NSS

NOT SOLD SEPARAT

GASKET

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER

1шт.

34

NSS

NOT SOLD SEPARAT

LOCK NUT

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER

4шт.

36

NSS

NOT SOLD SEPARAT

CAPSCREW

4шт.

37

NSS

NOT SOLD SEPARAT

O-RING

2шт.

38

NSS

NOT SOLD SEPARAT

TANK PORT ADAPTER

1шт.

39

NSS

NOT SOLD SEPARAT

POPPET

1шт.

40

NSS

NOT SOLD SEPARAT

RETAINING RING

1шт.

42

NSS

NOT SOLD SEPARAT

PRESSURE PORT ADAPTER

1шт.

45

NSS

NOT SOLD SEPARAT

RUBBER GASKET

1шт.

46

NSS

NOT SOLD SEPARAT

WASHER

1шт.
