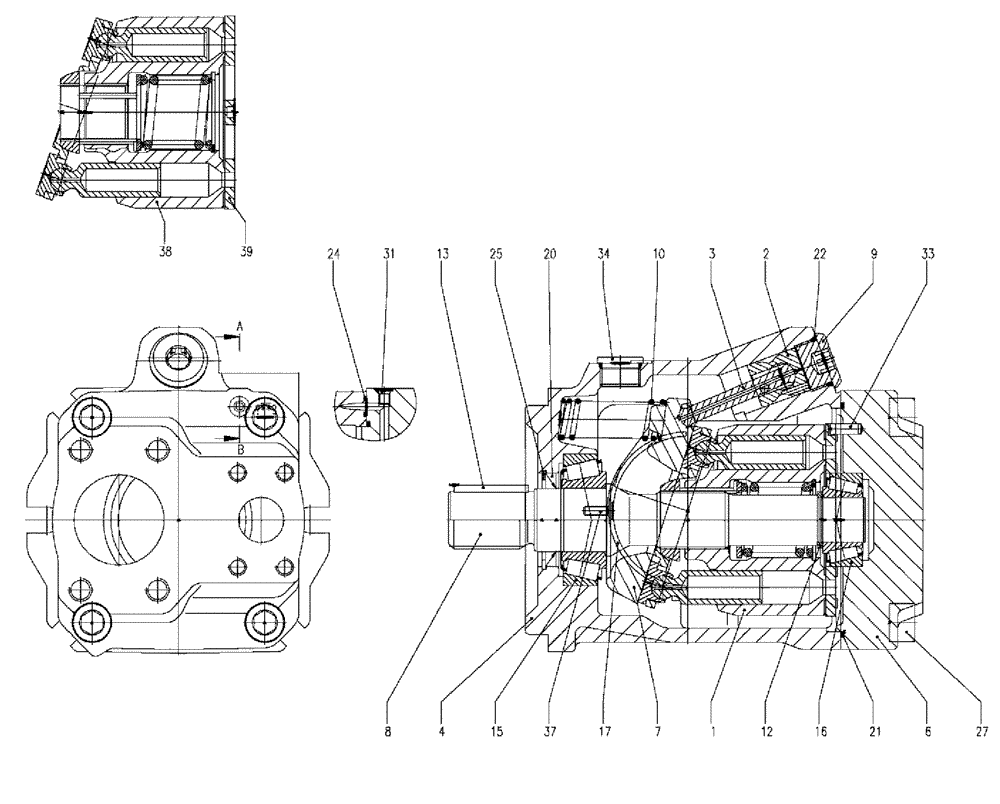

Запчасти Case IH 810 (07-007) - PUMP, PRESS COMP-60CC Hydraulic Components

0

86986504

PUMP

60CC, Pressure Compensated, Complete

1шт.

1

87268471

PIVOT PLATE

Rotary Group A10V 60/R

1шт.

2

87269704

PISTON

Control A10V

1шт.

3

87269705

PISTON ROD

A10V 45/50X

1шт.

4

87269706

PUMP

Housing A10VO

1шт.

6

87269707

PLATE

PORT, A10V

1шт.

7

87269708

PLATE

SWASH, A10V

1шт.

8

87269709

SHAFT

Drive, A10V

1шт.

9

87269710

PLUG

SCREW, A10 SERIES

1шт.

10

87269711

SPRING

1шт.

12

87269712

SHIM

A10V

1шт.

15

87269713

TAPERED BEARING

Tapered Roller 63

1шт.

16

87269714

TAPERED BEARING

TAPERED ROLLER

1шт.

17

87269715

CRADLE

Shell A10V R

1шт.

18

87269716

CRADLE

Shell A10V L

1шт.

20

87269717

SEAL

Shaft, Baft SL1AF

1шт.

21

87269718

O-RING,2.5mm Thk x 125mm ID

125 X 2, 5

1шт.

22

87269719

O-RING,23.7MM ID x 2.8MM Width

23, 7 X 2, 8

1шт.

24

87269720

O-RING

1шт.

25

87269721

LOCKING RING

SAFETY

1шт.

27

87269722

SCREW,Skt, M14

Socket, M14 x 45

1шт.

29

87269723

LOCKING RING

Stop, A10V 60

1шт.

31

87269724

STOP

PLUG

1шт.

33

87269725

DOWEL

PI6 M6 x 18

1шт.

34

87269726

PLUG

N 02.106-7/8 UNF 2A

1шт.

37

87269727

SCREW,CSK, M5 x 16mm

COUNTERSUNK, M5 X 16

1шт.

38

87269728

FIP KIT

Rotary Group A10V 60

1шт.

39

87269729

PLATE

DISTRIBUTOR

1шт.
