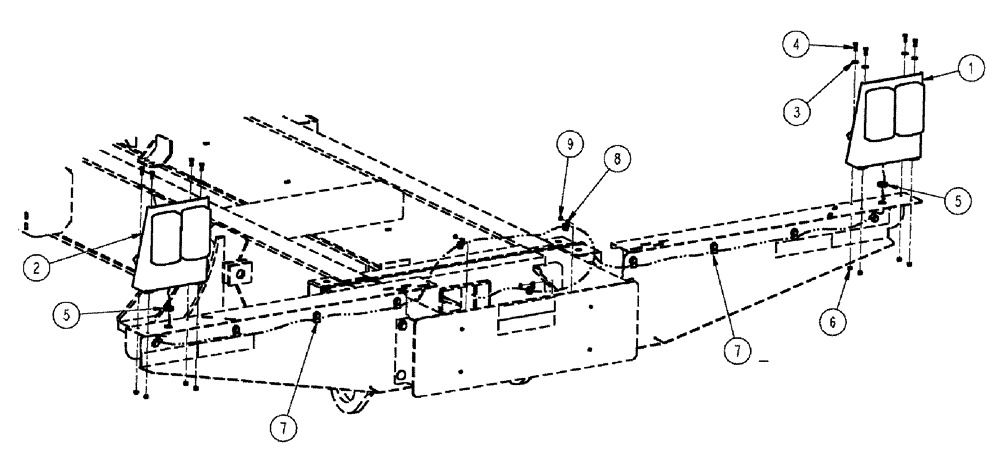

Запчасти Case IH 810 (05-002) - TAILLIGHT GROUP, 18" 60/70 438A Extensions & Mount Group

1

NS

NOT SERVICED

Taillight Assembly, Right Rear

1шт.

See Fig. 05-004

1шт.

2

NS

NOT SERVICED

Taillight Assembly, Left Rear

1шт.

See Fig. 05-005

1шт.

3

BN50138

WASHER,1/4", SS

8шт.

4

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

5

BN85855

GROMMET

Lg, for 1/2" hose

2шт.

6

BN55359

LOCK NUT,1/4"-20, SS

8шт.

7

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

8

435437A1

CABLE TIE,3/16" x 7 1/4"

RAP, "EYE TY" 06205 3M

3шт.

9

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.
