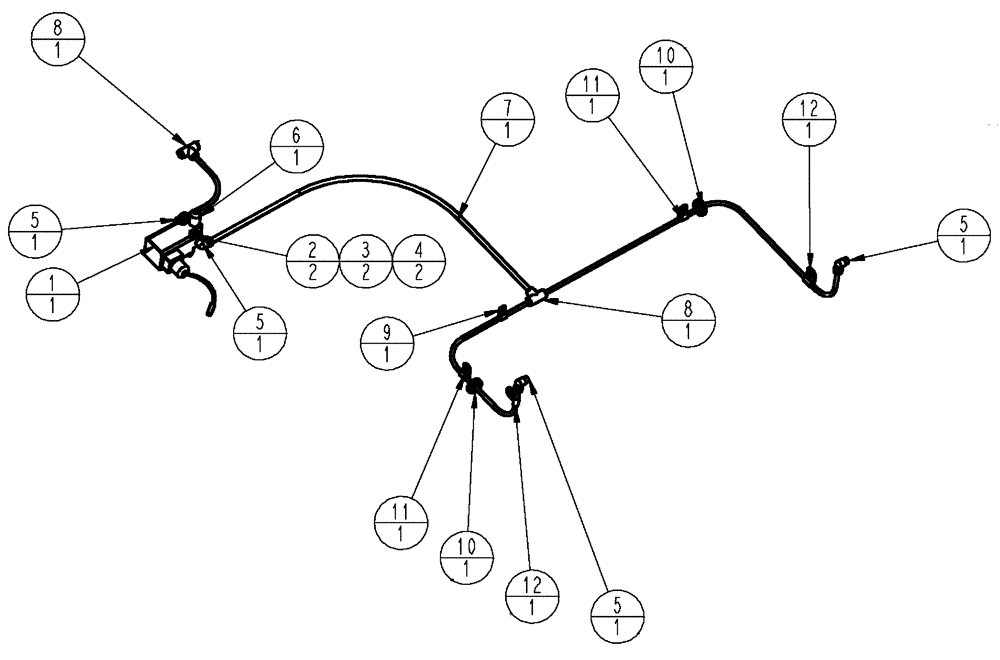

Запчасти Case IH 810 (04-032) - CRADLE, PNEUMATIC GROUP, "SERIAL #6700 AND LATER" Boom Group

1

84124892

PNEUMATIC VALVE

1шт.

2

87343617

SCREW,Phil Pan Hd, M5 x 50mm, Cl 4.8

Hex, M5 x 50, PHD 4.8 DOR

2шт.

3

BN310265

WASHER

10, Stainless Steel

2шт.

4

87344030

NUT,Prevailing Torque, M5 x 0.8, CL 8, DOR

2шт.

5

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

6

BN23042

MUFFLER

Air Valve, 1/4" NPT

1шт.

7

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

8

BN2399408

UNION TEE

Tube UTC140

2шт.

9

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

10

BN2290745

GROMMET

2864 (5/8" HOLE)

2шт.

11

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

12

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

2шт.
