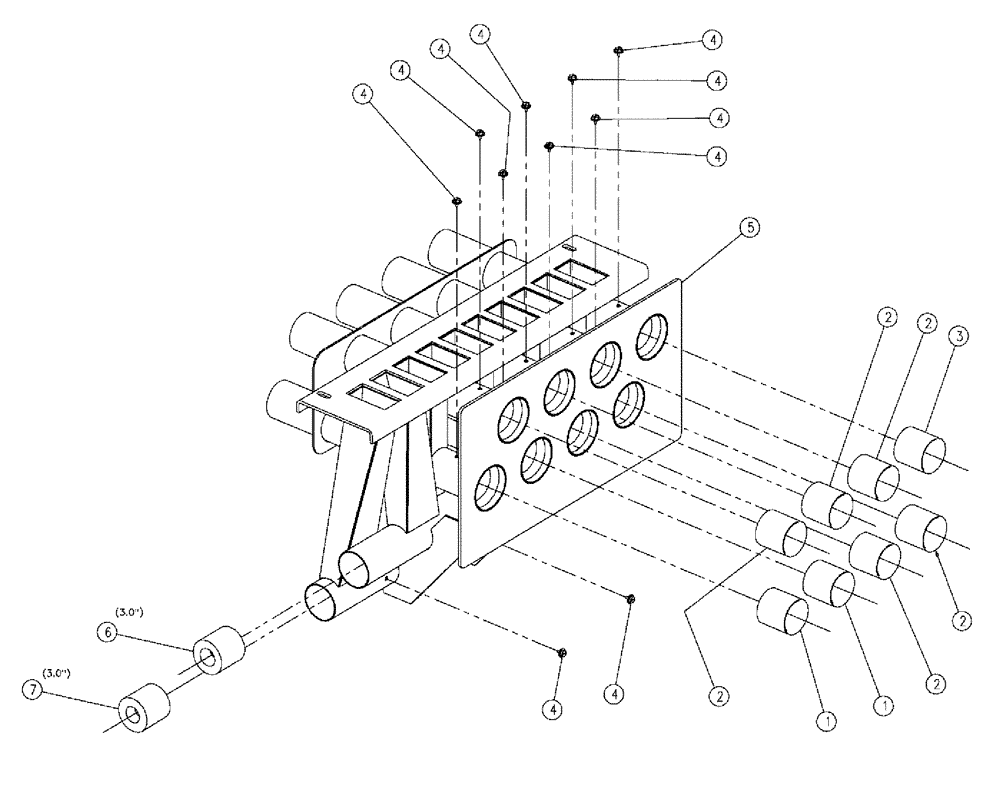

Запчасти Case IH 810 (04-029) - VENTURI GROUP, MID, 2.5", LH Boom Group

1

BN300323

VENTURI

2.5, 1.0, Blue, Start Serial: 7024

2шт.

1a

BN300323

VENTURI

2.5, 1.0, Blue

5шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

2

BN300324

VENTURI

2.5, 1.1, red, Start Serial: 7024

5шт.

2a

BN300324

VENTURI

2.5, 1.1, red

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

3

BN300325

VENTURI

2-1/2" OD x 1.2" ID, Green

1шт.

4

BN55388

SCREW,#10 x 3/8", SST

#10 X 3/8, SS TYPE A

10шт.

5

86986577

VENTURI

LH 2.5" With 3" R

1шт.

6

BN303566

VENTURI

3.0, 1.4, BROWN, Start Serial: 7024

1шт.

6a

BN303566

VENTURI

3.0, 1.4, BROWN

2шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

7

BN303565

VENTURI

3.0, 1.3, YELLOW, Start Serial: 7024

1шт.
