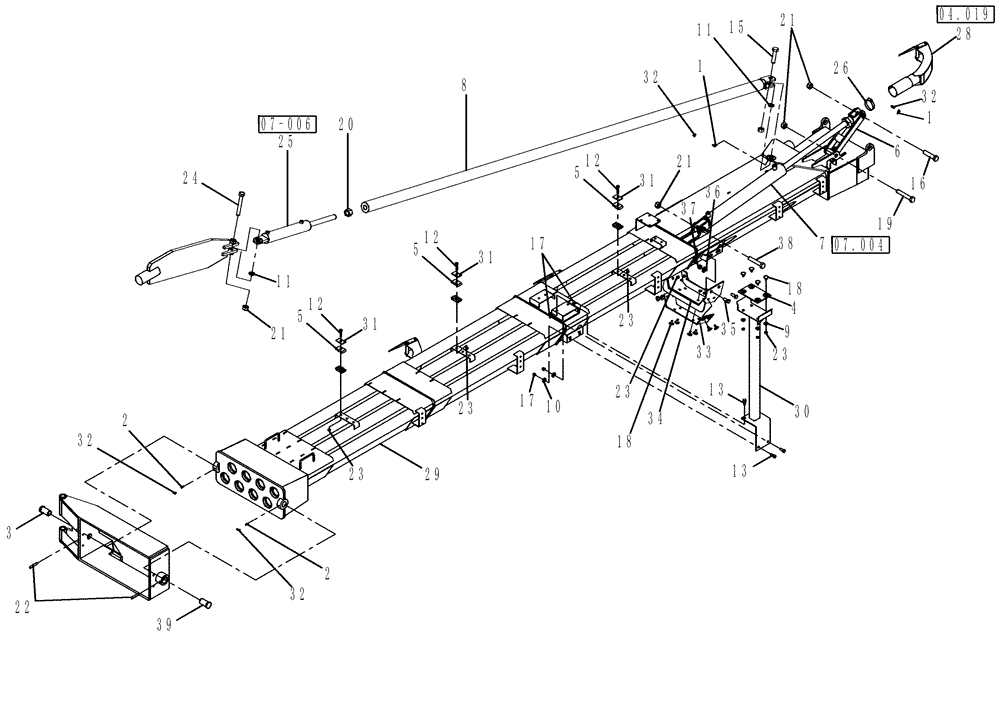

Запчасти Case IH 810 (04-024) - BOOM GROUP, 2.5", INNER, LH, 70, "BEFORE SERIAL #6700 " Boom Group

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

2шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

3

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

1шт.

4

BN315368

SLIDE

.19 X 6.25 X 4.13

1шт.

5

BN29779

CLAMP

Dual, 1/2" Tube

3шт.

6

87265962

ARM

Control Link

1шт.

7

87266458

CYLINDER,Double Acting, 31.75mm Rod, 503.68mm Stroke

Hydraulic, 3.00 x 19.63 x 1.25

1шт.

See Fig. 07-004

1шт.

8

BN315524

ARM

SUSPENSION 70'

1шт.

9

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

10

BN50146

WASHER,3/8", Stainless

2шт.

11

BN50178

WASHER

WHM, 1.25 OD X .75 ID X 10 GA

2шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

3шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

15

87310193

BOLT,3/4"-10 X 3.00", GR5, DOR

1шт.

16

87310194

BOLT,3/4"-10 x 3-1/2", G5, DOR

1шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

18

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

12шт.

19

87310196

BOLT,3/4"-10 x 4-1/2", G5, DOR

1шт.

20

87310319

JAM NUT,1"-14, G8

1шт.

21

87310323

NUT,3/4"-10, GR B, DOR

5шт.

22

BN55198

ROLL PIN

3/8 X 2 1/2, SS

2шт.

23

BN55361

NUT,5/16"-18, Nylon, Stainless

12шт.

24

87310197

BOLT,3/4"-10 x 5", G5, DOR

1шт.

25

87266447

CYLINDER,Double Acting, 25.4mm Rod, 254mm Stroke

Hydraulic, 2.5 X 10 X 1

1шт.

See Fig. 07-006

1шт.

26

87271751

CLAMP

Hi-Torque

4шт.

28

BN325679

DEFLECTOR

2.50, L.H.

4шт.

See Fig. 04-019

1шт.

29

BN314038

BOOM

L.H. 2.5 INR 70

1шт.

30

BN315304

SUPPORT

tip-over, 70'

1шт.

31

BN311653

PLATE

SIZE 2

3шт.

32

BN69951

CAP

Grease

4шт.

33

BN315570

CRADLE

Boom Holder

1шт.

34

BN315572

CRADLE

Slide, Boom Holder

1шт.

35

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

36

87310600

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

37

87343981

NUT,1/2"-13, GR B, DOR

4шт.

38

280210

BOLT,Hex, 3/4"-10 x 4", G5

1шт.

39

BN65661

PIN,31.75mm OD x 66.8mm L

1.25" dia x 2.88"

1шт.
