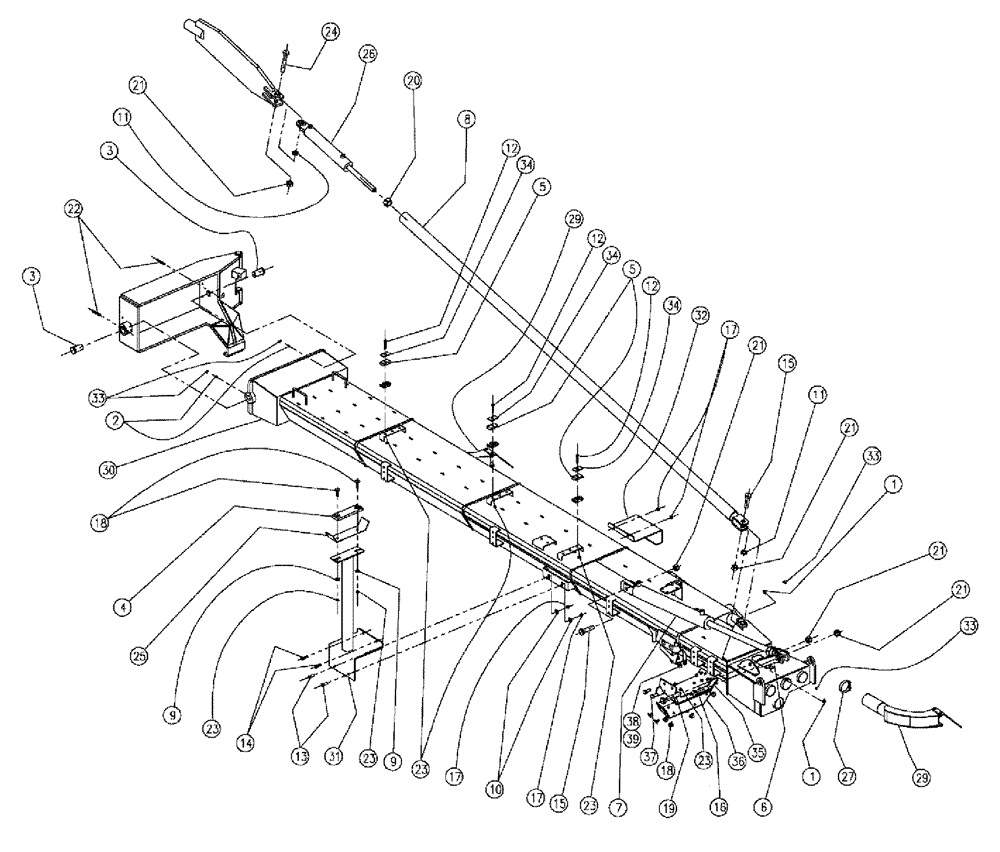

Запчасти Case IH 810 (04-015) - BOOM GROUP, 2.5", 60, INNER, LH Boom Group

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

2шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

3

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

2шт.

3a

BN65661

PIN,31.75mm OD x 66.8mm L

50 DIA X 2.88

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

4

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

1шт.

5

BN29779

CLAMP

Dual, 1/2" Tube

3шт.

6

BN35558

ARM

CONTROL LINK

1шт.

7

87266445

CYLINDER,Double Acting, 31.75mm Rod, 508mm Stroke

Hydraulic, 2.5 x 20 x 1.25, Complete

1шт.

See Fig. 07-003

1шт.

8

BN35892

ARM

SUSPENSION

1шт.

9

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

10

BN50146

WASHER,3/8", Stainless

2шт.

11

BN50178

WASHER

WHM, 1.25 OD X .75 ID X 10 GA

2шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

3шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

14

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

15

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

16

87310194

BOLT,3/4"-10 x 3-1/2", G5, DOR

1шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

18

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

10шт.

19

87310196

BOLT,3/4"-10 x 4-1/2", G5, DOR

1шт.

20

87310319

JAM NUT,1"-14, G8

1шт.

21

87310323

NUT,3/4"-10, GR B, DOR

5шт.

22

BN55198

ROLL PIN

3/8 X 2-1/2, SS

2шт.

23

BN55361

NUT,5/16"-18, Nylon, Stainless

11шт.

24

87310197

BOLT,3/4"-10 x 5", G5, DOR

1шт.

25

BN65473

SUPPORT

BOOM TIP

1шт.

26

87266447

CYLINDER,Double Acting, 25.4mm Rod, 254mm Stroke

Hydraulic, 2.5 x 10 x 1, Complete

1шт.

See Fig. 07-006

1шт.

27

87271751

CLAMP

Hi-Torque, Start Serial: 7182

4шт.

27a

87271751

CLAMP

Hi-Torque

4шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

27b

BN68086

CAP

RND, RUBBER, .25 ID X 1.00

4шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

29

BN325679

DEFLECTOR

2.5, L.H.

4шт.

See Fig. 04-019

1шт.

30

87270419

BOOM

60' L.H. INR LOCK, Start Serial: 6700

1шт.

30a

BN69194

BOOM

INNER, 2.50, R.H.

1шт.

Indicates Old Part Number or Can Order Newer Part Number Listed above

1шт.

31

BN69278

SUPPORT

TIP-OVER

1шт.

32

BN69280

SUPPORT

TIP-OVER

1шт.

33

BN69951

CAP

Grease

4шт.

34

BN311653

PLATE

DUAL, SIZE 2, Start Serial: 6700

3шт.

Includes Refs. 34 - 39

1шт.

35

BN315570

CRADLE

Boom Holder

1шт.

36

BN315572

CRADLE

Slide, Boom Holder

1шт.

37

BN50679

BOLT,1/2-13 X 1.25", Stainless

4шт.

38

87310600

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

39

87343666

NUT

Hex, 1/2"-13, G5

4шт.
