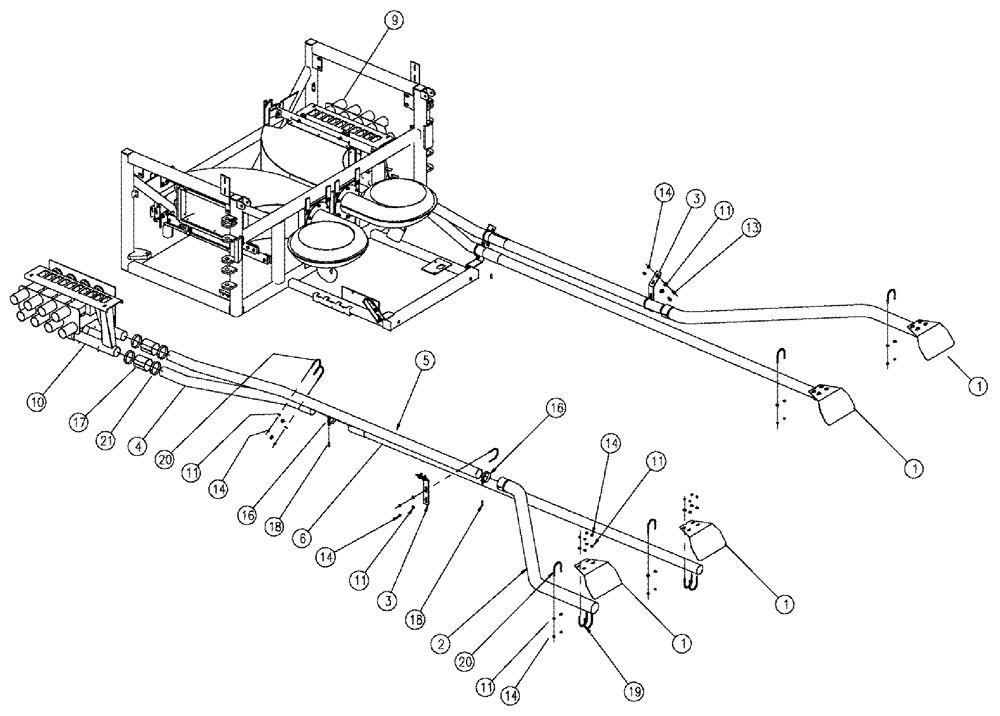

Запчасти Case IH 810 (04-013) - TUBES GROUP, MID, 2.5", 60 Boom Group

1

344019A1

DEFLECTOR

Rear

4шт.

2

86986121

TUBE,3" OD

Side (RR)-(60')-3" Nitronic

2шт.

3

BN300747

BRACKET

TUBES, REAR

2шт.

4

86986579

TUBE,3" OD

Side (Front) 3" Nitronic

2шт.

5

86986436

TUBE,3" OD x 99.25", 4.31" L

Side, 3" Nitronic

2шт.

6

86986580

TUBE,3" ID x 112.25", 2.50" L

Side-3" Nitronic

2шт.

9

86986582

VENTURI

RH, 2.5", 3" RR

1шт.

See Fig. 04-028

1шт.

10

86986583

VENTURI

LH, 2.5, 3" RR

1шт.

See Fig. 04-029

1шт.

11

BN50146

WASHER,3/8", Stainless

40шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

40шт.

16

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

4шт.

17

86986595

COUPLING,76.2mm ID x 88.9mm OD x 88.9mm L

3.0" I.D.

4шт.

18

BN68086

CAP

RND, RUBBER, .25 ID X 1.00

4шт.

19

BN68492

U-BOLT

3/8-16 UNC X 3, SS

8шт.

20

BN53399

PIPE CLAMP

3" MUFFLER

10шт.

21

87485005

CLAMP,2.56" - 3.5"

HOSE, 48 3.5/2.56 F SST 300

8шт.
