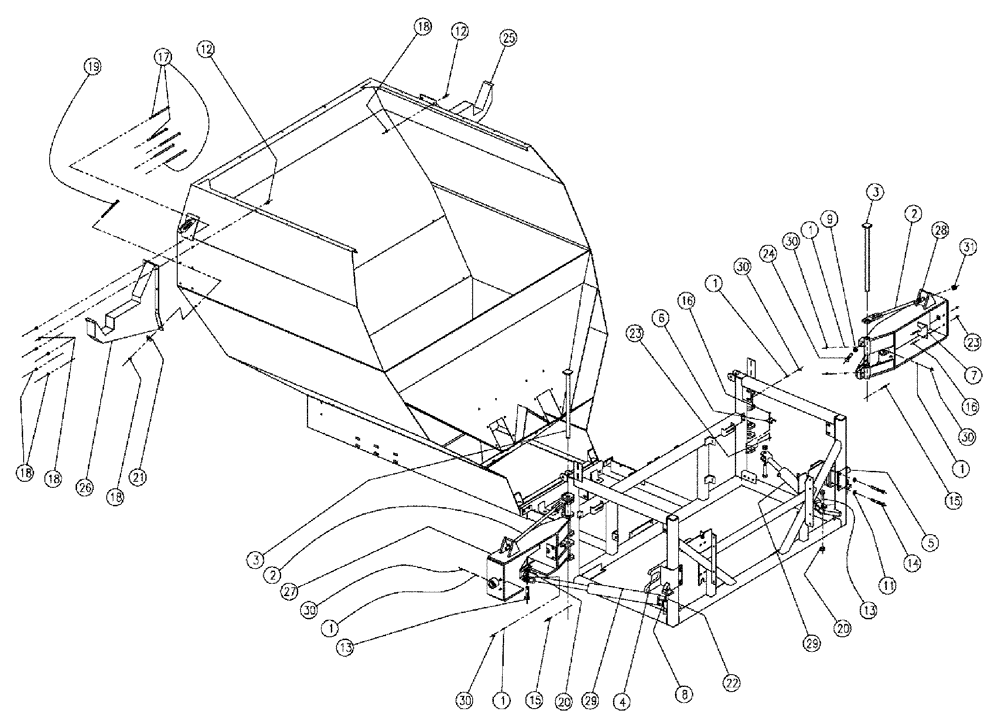

Запчасти Case IH 810 (04-001) - BOOM FOLD PARTS, MID, 2.5" & 3", 60," BEFORE SERIAL #6700 " Boom Group

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

12шт.

2

BN35642

SUPPORT

HINGE, MID

2шт.

3

BN35722

PIN

BOOM, INNER

2шт.

4

BN35882

SUPPORT

HINGE, MID, R.H.

1шт.

5

BN35883

SUPPORT

HINGE, MID, L.H.

1шт.

6

343169A1

SPACER

DOOR HINGE, 14 GA

4шт.

6a

BN35983

SPACER

DOOR HINGE, 7 GA

6шт.

Associated Part of Door Hinge P/N 343169A1

1шт.

6b

BN35984

SPACER

DOOR HINGE, 10 GA

3шт.

Associated Part of Door Hinge P/N 343169A1

1шт.

6c

BN35985

SPACER

DOOR HINGE, 12 GA

4шт.

Associated Part of Door Hinge P/N 343169A1

1шт.

7

342683A1

SPACER

boom, 14 GA

3шт.

7a

BN35990

SPACER

BOOM, 7 GA

1шт.

Associated Part of Boom Spacer P/N 342683A1

1шт.

7b

BN35991

SPACER

BOOM, 10GA

1шт.

Associated Part of Boom Spacer P/N 342683A1

1шт.

7c

BN35992

SPACER

BOOM, 12 GA

1шт.

Associated Part of Boom Spacer P/N 342683A1

1шт.

8

BN50071

NUT,1/2"-13, Stainless

2шт.

9

BN50082

JAM NUT

5/8-11 HEX JAM

2шт.

10

BN50086

NUT

3/4-10, HH, G5

4шт.

11

BN50156

LOCK WASHER

5/8 SPRING LOCK

4шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

14

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

4шт.

15

BN50600

COTTER PIN

3/16" X 1-1/2"

2шт.

16

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

14шт.

17

280505

BOLT,Hex, 3/8"-16 x 7 1/2", G5

10шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

14шт.

19

87310190

BOLT

3/8-16 X 6, G5, DOR

2шт.

20

280375

NUT,3/4"-10, GC

4шт.

21

BN53802

WASHER

Beveled, 1/2"

2шт.

22

BN55347

BOLT

1/2-13 X 3, Stainless Steel, Tap

2шт.

23

BN55359

LOCK NUT,1/4"-20, SS

14шт.

24

BN305447

SCREW,5/8" - 11 x 3", Gr 8

5/8-11 X 3, HHFT, G8

2шт.

25

BN65238

SUPPORT

MID, L.H.

1шт.

26

BN65239

SUPPORT

MID, R.H.

1шт.

27

BN65724

HINGE

BOOM, MID, R.H.

1шт.

28

BN65725

HINGE

BOOM, MID, L.H.

1шт.

29

87266446

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Hydraulic, 2.5 x 16 x 1.25, Complete

2шт.

See Fig. 07-005

1шт.

29

87266446R

REMAN-HYD CYLINDER

810 FLEX-AIR APPLICATOR, MID, 2.5 & 3", 60'," BEFORE SERIAL #6700 ", Hydraulic, 2.5 x 16 x 1.25, Complete (9/09-12/11)

2шт.

29

87266446C

CORE-HYD CYLINDER

Return Number

2шт.

30

BN69951

CAP

Grease

12шт.

31

86518194

NUT,3/4"-10, G8

4шт.
