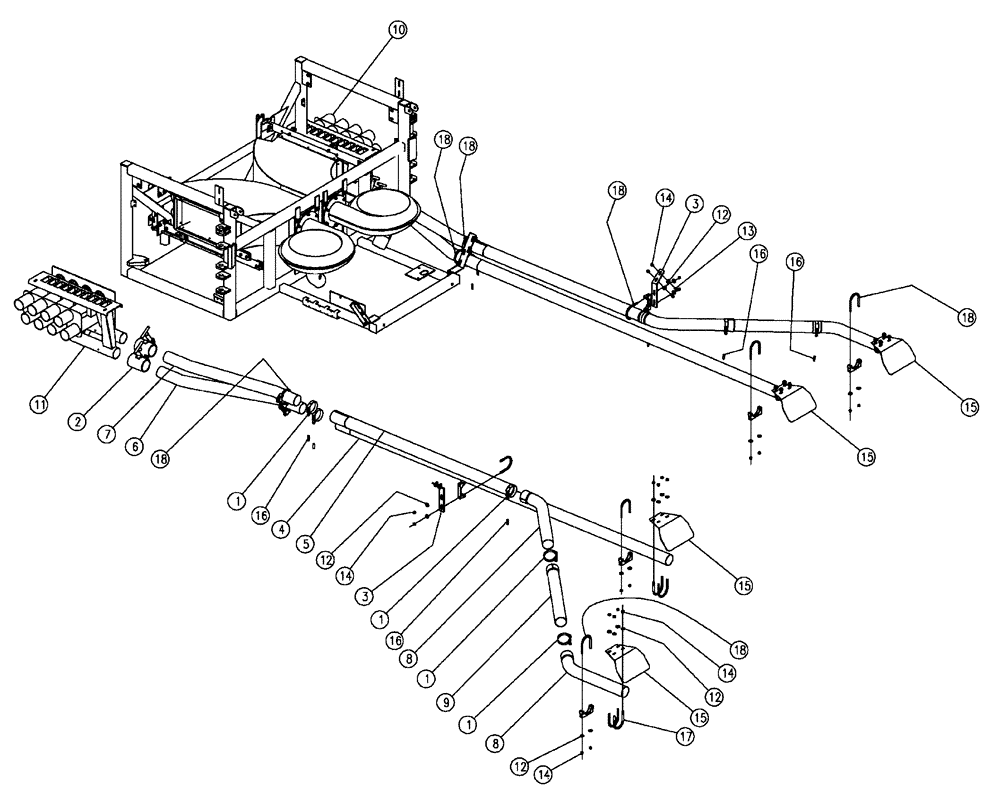

Запчасти Case IH 438 (04-002) - TUBES GROUP, MID, 3.0”, 60’ Boom Group

1

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

10шт.

2

84185931

COUPLING

Pneumatic, 3"

4шт.

3

BN300747

BRACKET

Tubes, Rear

2шт.

4

BN306704

TUBE

Weldment, 3.00 X 112.25

2шт.

5

BN325225

TUBE

Weldment, 3.00" DIA.SS

2шт.

6

BN300839

TUBE

Formed, 3.0, 20~X 41.25

2шт.

7

BN300840

TUBE

Formed, 3.0, 10~X 41.25

2шт.

8

BN300841

TUBE,847.344mm L

Formed, 3.0, 45 X 19.68

4шт.

9

BN300842

TUBE

Swedged, 3.00 X 25.00

2шт.

10

BN303282

VENTURI

Mid, 3.0, RH, See Fig 04-003

1шт.

11

BN303284

VENTURI

Mid, 3.0, LH, See Fig 04-004

1шт.

12

BN50146

WASHER,3/8", Stainless

40шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

14

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

40шт.

15

344019A1

DEFLECTOR

Rear

4шт.

16

BN68086

CAP

RND, Rubber, .25 ID x 1.00

10шт.

17

BN68492

U-BOLT

3/8 - 16 UNC x 3, SS

8шт.

18

BN53399

PIPE CLAMP

3" Muffler

10шт.
