(02-052) - COVER ASSEMBLY, RH BIN

Запчасти Case IH 438 (02-052) - COVER ASSEMBLY, RH BIN Bin Group

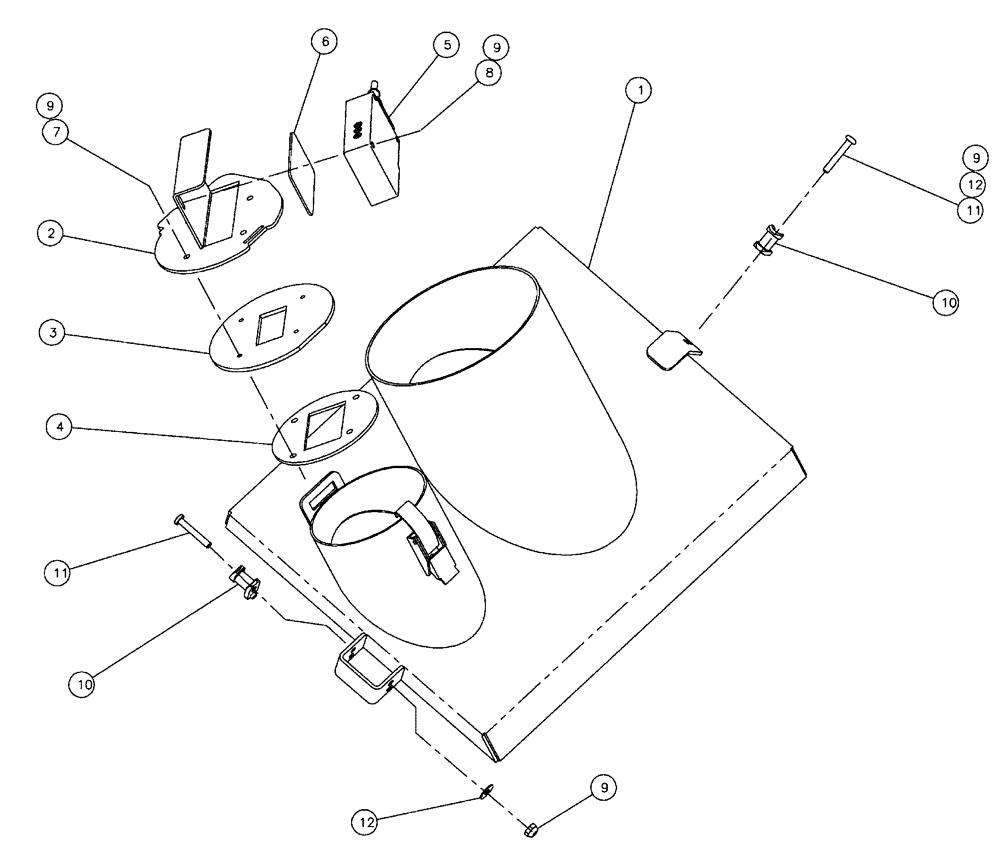

Схема запчастей Case IH 438 - (02-052) - COVER ASSEMBLY, RH BIN Bin Group
11
12
9
9
9
6
10
4
11
2
5
12
6
7
8
10
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86986413

COVER

RH Bin

1шт.

2

86986111

CAP

Cap, RH Mount

1шт.

3

86986115

RUBBER SLEEVE

Rubber

1шт.

4

86986114

PLATE

Retainer

1шт.

5

BN322583

SENSOR

1шт.

6

BN321167

GASKET

Sensor Cushion

1шт.

7

BN2407985

SCREW,Hex, #10 - 24 x 3/4"

10-24 x 3/4", HH, SST

4шт.

8

BN316803

SCREW,#10 - 24 x 1 1/2", SST

MACH. - #10 - 24 X 1.5SS

2шт.

9

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

10

BN309337

LATCH

Flexible Draw

2шт.

11

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10 - 24 X 1.25, BSH, SS

2шт.

12

BN310265

WASHER

10, Stainless Steel

2шт.
