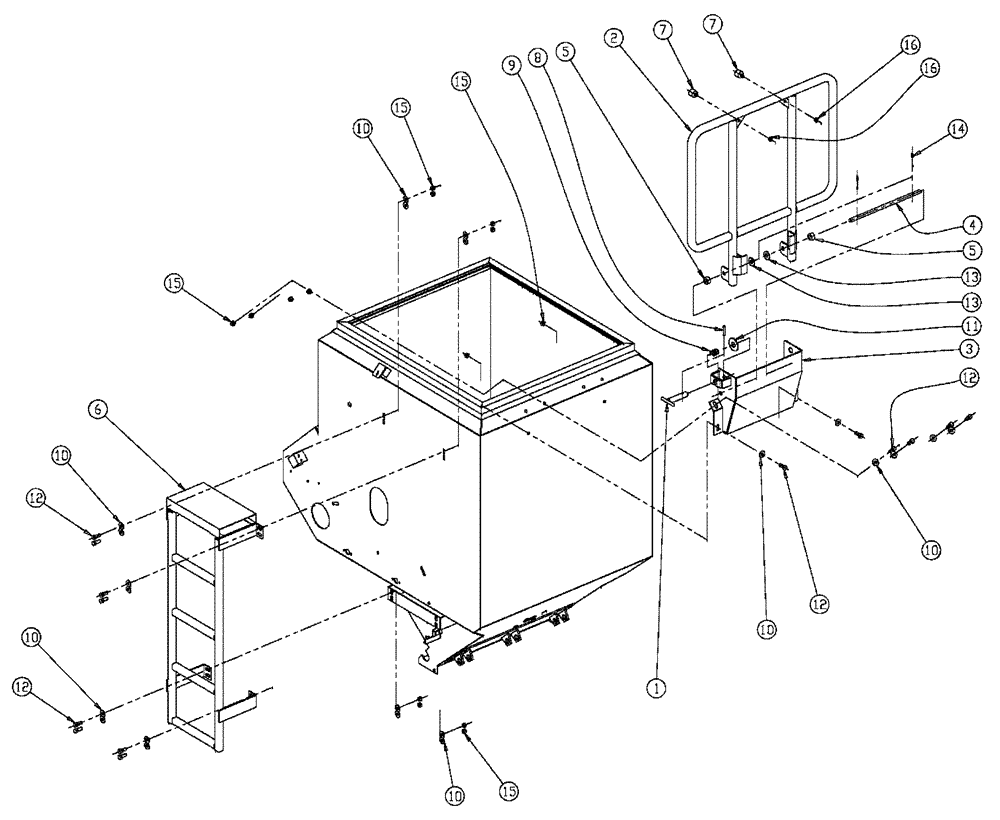

Запчасти Case IH 438 (02-049) - LADDER & HANDRAIL GROUP, DOUBLE & TRIPLE BIN & DOUBLE BIN W/AUGER, 50 CU. FT Bin Group

1

BN05412

PIN

Locking MW

1шт.

2

BN308099

HANDRAIL

W/M, Co-Ap Bin

1шт.

3

BN308100

SUPPORT

W/M, Co-Ap Handrail

1шт.

4

BN308104

PIN

Handrail Pivot

1шт.

5

BN308105

BUSHING

Co-Ap Handrail

2шт.

6

BN308122

LADDER

W/M, Co-Ap Bin

1шт.

7

BN310002

BUMPER

1.00 OD x 1.0 H

2шт.

8

BN31444

PIN, ROLL

1/4 X 1 1/2

1шт.

9

BN31937

SPRING

COMPR., .905 X .765 2

1шт.

10

BN50146

WASHER,3/8", Stainless

22шт.

11

BN50178

WASHER

1.25 OD X .75 ID X 10 GA

1шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

14шт.

13

BN50595

WASHER,1/2", Stainless

2шт.

14

BN50602

COTTER PIN

1/8" X 1.25

2шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

14шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.
