Запчасти Case IH 438 (02-036) - BIN GROUP, DOUBLE & TRIPLE BIN & DOUBLE BIN W/AUGER, LH, 50 CU. FT. Bin Group

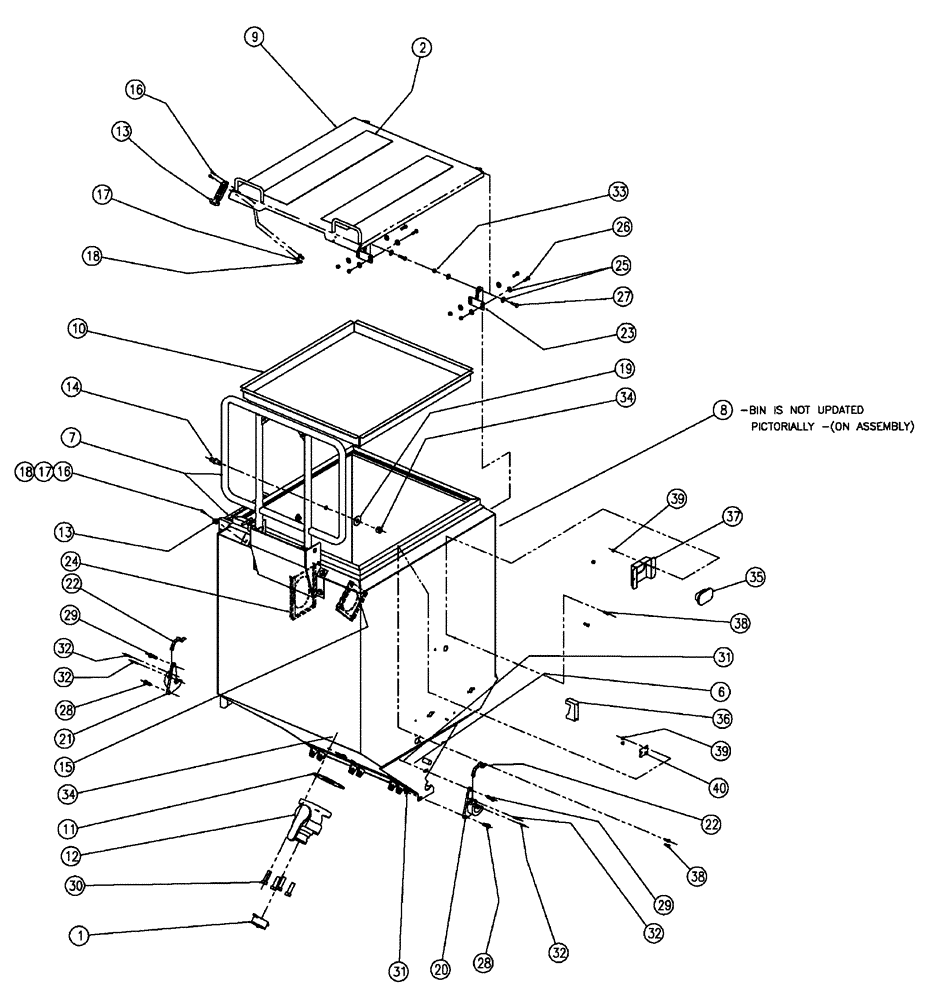

Схема запчастей Case IH 438 - (02-036) - BIN GROUP, DOUBLE & TRIPLE BIN & DOUBLE BIN W/AUGER, LH, 50 CU. FT. Bin Group
15
2
18
7
19
28
34
16
17
10
29
33
38
30
38
29
13
35
1
22
18
31
12
8
34
28
11
36
25
6
32
40
27
31
22
9
16
20
37
32
24
23
39
14
37
26
13
32
21
39
17

Артикул

Название

Примечание

Количество

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN54054

TAPE

Safety Walk 6 X 29

2шт.

6

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

7

BN312863

Ladder & Handrail, 50, See Fig 02-049

1шт.

8

87266479

CONTAINER

Bin, LH Co-Ap-(50)

1шт.

9

87265914

COVER

Co-Ap Bin(50)

1шт.

10

BN312897

SCREEN

W/M, Co-Ap, 50

1шт.

11

BN309335

FLANGE,2" ANSI Flange EPDM Gasket

2" Ansi Flange, EPDM

1шт.

12

BN309336

VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange

2" FP, Ansi Flange

1шт.

13

BN309337

LATCH

Flexible Draw

1шт.

14

BN309338

PIN

5/8 With Shoulder

1шт.

15

87265979

WINDOW

5.5 x 5.5, Supplemental Bin

1шт.

16

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10 - 24 X 1.25, BSH, SS

3шт.

17

BN310265

WASHER

10, Stainless Steel

3шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

19

BN310267

WASHER,5/8", Stainless Steel

1шт.

20

BN35705

BEARING HOUSING

Valmar - HSG, LH

1шт.

21

BN35706

BEARING HOUSING

Valmar - HSG, RH

1шт.

22

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

23

87266476

HINGE

Co-Ap Cover (50)

2шт.

24

87265978

WINDOW

Co-Ap Bin

1шт.

25

BN50142

WASHER,5/16", Stainless Steel

12шт.

26

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

27

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

2шт.

28

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

29

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

30

BN50648

BOLT,5/8"-11 X 2.00", Stainless Steel

4шт.

31

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

32

BN55216

ROLL PIN

5/32 X 1 1/2, SS

4шт.

33

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

34

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

5шт.

35

BN310648

LIGHT

1шт.

36

BN319646

SENSOR

Hopper Level

1шт.

37

BN310644

MOUNTING PLATE

W/M, Bin Lights

1шт.

38

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

39

BN55359

LOCK NUT,1/4"-20, SS

4шт.

40

BN319230

COVER

Wire, Hopper Sensor

1шт.

Выбрано товаров: 37
