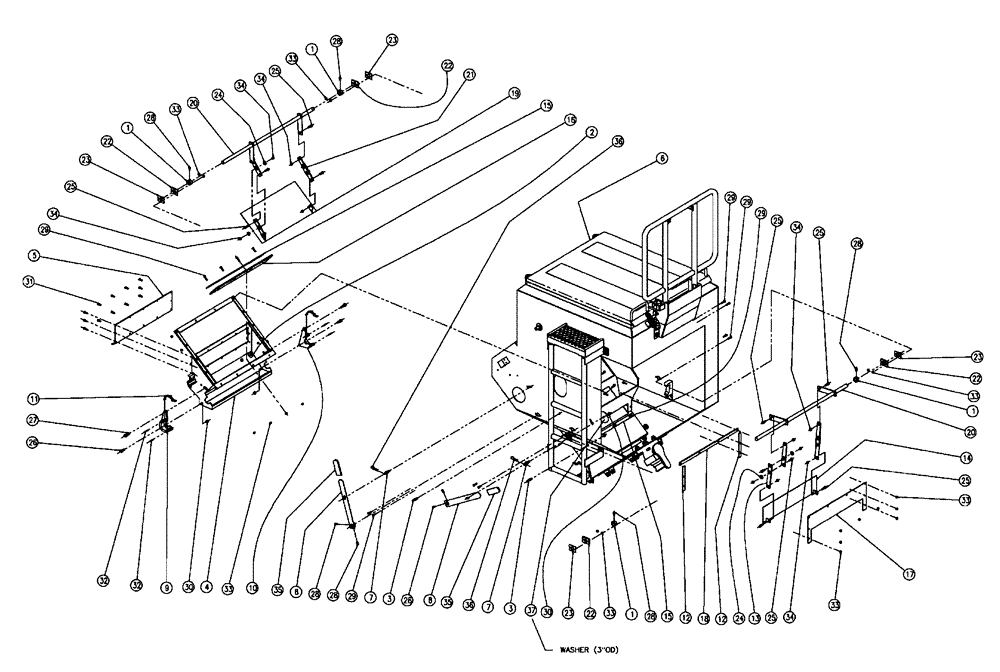

Запчасти Case IH 438 (02-035) - BIN GROUP, TRIPLE BIN, LH, 50 CU. FT. Bin Group

1

BN10054

COLLAR

1 1/4" od x 3/4" id HRST

4шт.

2

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

3

BN307047

PIN

3/8 With Shoulder

2шт.

4

BN309310

SUPPORT

Supplemental W/M, LH

1шт.

5

BN309317

PANEL

Supplemental Access

1шт.

6

87266488

LH - (50), See Fig 02-036

1шт.

7

BN310283

PIN

3/8 With .75 Shoulder

2шт.

8

BN35411

HANDLE

W/M, Gate, Conveyor

2шт.

9

BN35705

BEARING HOUSING

Valmar - HSG, LH

1шт.

10

BN35706

BEARING HOUSING

Valmar - HSG, RH

1шт.

11

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

12

BN35785

SLIDE

Vert., Co-Ap Gate

2шт.

13

BN35786

LINK

Co-Ap Bin Gate

4шт.

14

BN35787

GATE ASSY

W/M, Co-Ap Bin

1шт.

15

BN35788

SEAL

Co-Ap Gates

2шт.

16

BN35789

SEAL

Co-Ap Gates

1шт.

17

BN35790

COVER

Co-AP Bin Gate

1шт.

18

BN35791

SLIDE

Horizontal, Co-Ap Gate

1шт.

19

BN35793

GATE ASSY

W/M - Supplemental Bin

1шт.

20

BN35796

SHAFT

W/M - Supplemental Gate

2шт.

21

BN35799

LINKAGE

Supplemental Gate

4шт.

22

BN35800

BUSHING

Shaft, Supplemental Gate

4шт.

23

BN35801

SEAL

Shaft, Supplemental Gate

4шт.

24

BN50142

WASHER,5/16", Stainless Steel

8шт.

25

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

16шт.

26

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

27

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

28

BN50421

SET SCREW

5/16" - 18 X 1/2"

8шт.

29

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

34шт.

30

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

31

BN313961

SCREW,Hex, 1/4" x 3/4", SST

1/4" X 3/4", HH, STP, SS

12шт.

32

BN55216

ROLL PIN

5/32 X 1 1/2, SS

4шт.

33

BN55359

LOCK NUT,1/4"-20, SS

34шт.

34

BN55361

NUT,5/16"-18, Nylon, Stainless

16шт.

35

BN65711

CAP

RECT., 1.25 X . 162 X 4.00

2шт.

36

BN71007

CLIP,3/16" Hairpin

Hairpin - 3/16"#8

2шт.

37

BN310862

WASHER

Co-Ap Bin

2шт.
