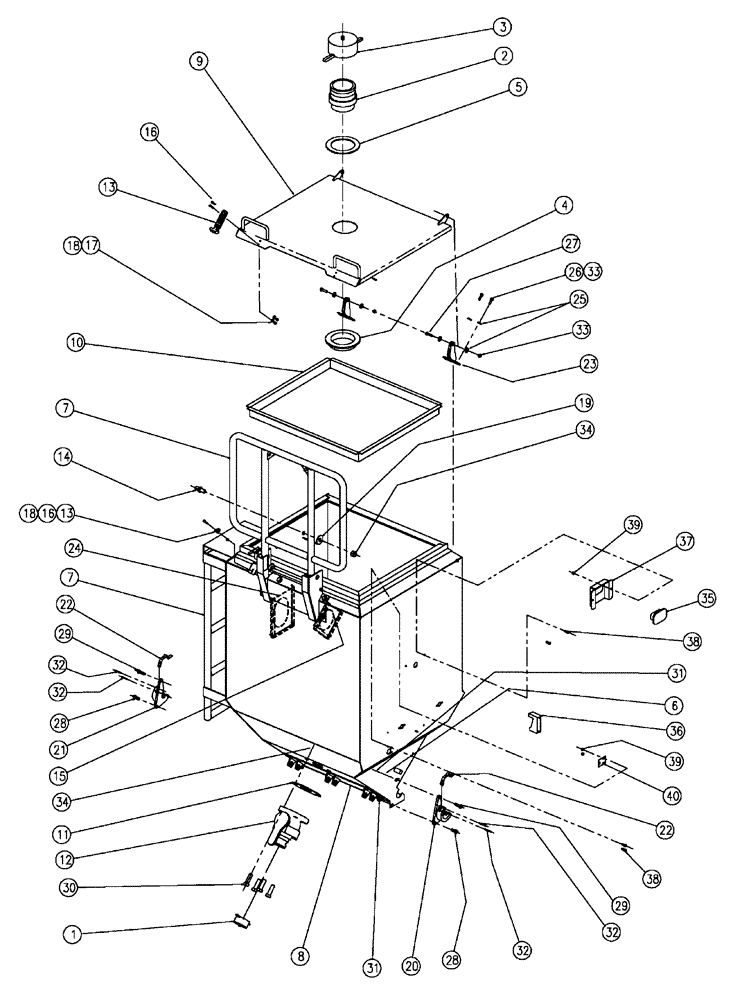

Запчасти Case IH 438 (02-030) - BIN GROUP, DOUBLE & TRIPLE BIN, LH, 37 CU. FT. Bin Group

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN22944

ADAPTER

Male 4" Nyglass

1шт.

3

BN22945

CAP

4" DC Nyglass

1шт.

4

BN23309

PIPE UNION NUT

4" Pipe Thread

1шт.

5

BN23310

GASKET

4"

1шт.

6

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

7

BN308112

Ladder And Handrail, See Fig 02-050

1шт.

8

87265885

CONTAINER

Bin, LH Co-Ap -(37)

1шт.

9

87265899

COVER

Co-Ap Bin (37)

1шт.

10

BN308141

SCREEN

W/M, Co-Ap

1шт.

11

BN309335

FLANGE,2" ANSI Flange EPDM Gasket

2" Ansi Flange, EPDM

1шт.

12

BN309336

VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange

2" FP, Ansi Flange

1шт.

13

BN309337

LATCH

Flexible Draw

1шт.

14

BN309338

PIN

5/8 With Shoulder

1шт.

15

87265979

WINDOW

5.5 x 5.5, Supplemental Bin

1шт.

16

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10 - 24 X 1.25, BSH, SS

3шт.

17

BN310265

WASHER

10, Stainless Steel

3шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

19

BN310267

WASHER,5/8", Stainless Steel

1шт.

20

BN35705

BEARING HOUSING

Valmar - HSG, LH

1шт.

21

BN35706

BEARING HOUSING

Valmar - HSG, RH

1шт.

22

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

23

87265896

COVER

Hinge, 37 Co-Ap

2шт.

24

87265978

WINDOW

Co-Ap Bin

1шт.

25

BN50142

WASHER,5/16", Stainless Steel

10шт.

26

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

27

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

2шт.

28

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

29

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

30

BN50648

BOLT,5/8"-11 X 2.00", Stainless Steel

4шт.

31

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

32

BN55216

ROLL PIN

5/32 X 1 1/2, SS

4шт.

33

BN55361

NUT,5/16"-18, Nylon, Stainless

7шт.

34

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

5шт.

35

BN310648

LIGHT

1шт.

36

BN319646

SENSOR

Hopper Level

1шт.

37

BN310644

MOUNTING PLATE

W/M, Bin Lights

1шт.

38

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

39

BN55359

LOCK NUT,1/4"-20, SS

4шт.

40

BN319230

COVER

Wire, Hopper Sensor

1шт.
