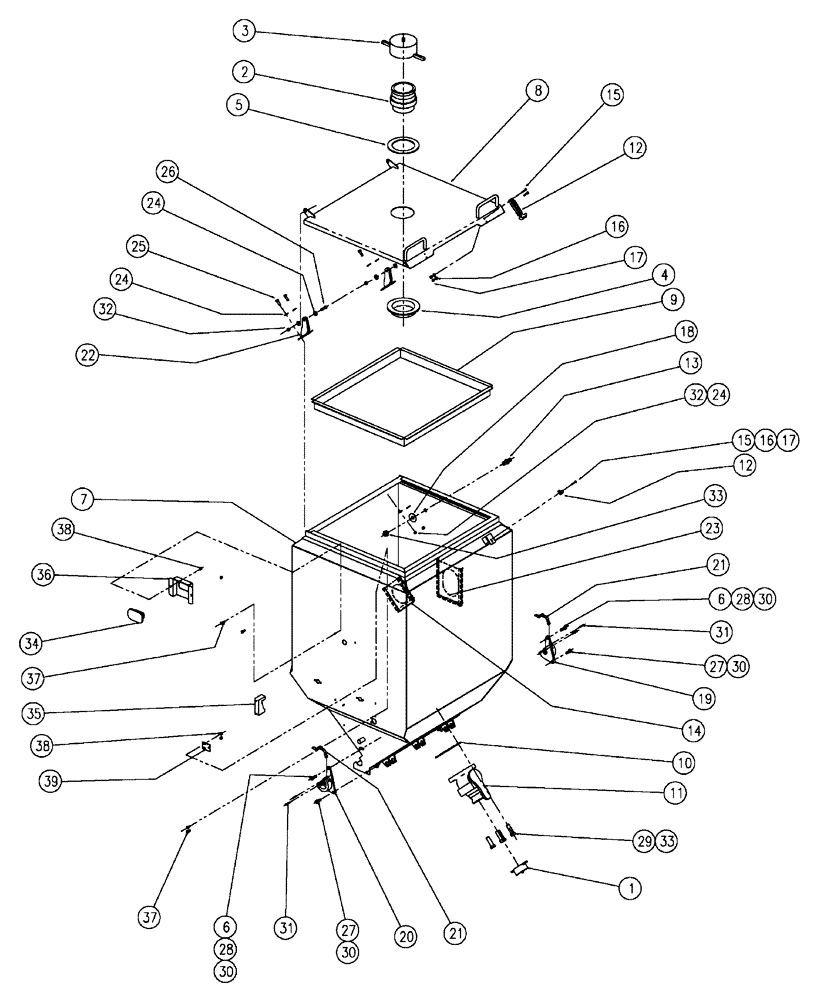

Запчасти Case IH 438 (02-028) - BIN GROUP, DOUBLE & TRIPLE BIN, RH, 37 CU FT Bin Group
№
Артикул
Название
Примечание
Количество
2
BN22944
ADAPTER
Male 4" Nyglass
1шт.
3
BN22945
CAP
4" DC Nyglass
1шт.
4
BN23309
PIPE UNION NUT
4" Pipe Thread
1шт.
5
BN23310
GASKET
4"
1шт.
6
BN23452
WASHER,13/32" x 1.25 " OD x 12 GA, SS
2шт.
7
87265884
CONTAINER
Bin, RH Co-Ap-(37)
1шт.
8
87265899
COVER
Co-Ap Bin (37)
1шт.
9
BN308141
SCREEN
W/M, Co-Ap
1шт.
10
BN309335
FLANGE,2" ANSI Flange EPDM Gasket
2" Ansi Flange, EPDM
1шт.
11
BN309336
VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange
2" FP, Ansi Flange
1шт.
12
BN309337
LATCH
Flexible Draw
1шт.
13
BN309338
PIN
5/8 With Shoulder
1шт.
14
87265979
WINDOW
5.5 x 5.5, Supplemental Bin
1шт.
15
BN310264
SCREW,#10 - 24 x 1 1/4", SST
10 - 24 X 1.25, BSH, SS
3шт.
16
BN310265
WASHER
10, Stainless Steel
3шт.
17
BN310266
BHD LOCK NUT,#10-24, Nylon, Stainless Steel
3шт.
18
BN310267
WASHER,5/8", Stainless Steel
1шт.
19
BN35705
BEARING HOUSING
Valmar - LH
1шт.
20
BN35706
BEARING HOUSING
Valmar - RH
1шт.
21
BN35707
BEARING CAP
Valmar - Latch, Stainless Steel
2шт.
22
87265896
COVER
Hinge, 37 Co-Ap
2шт.
23
87265978
WINDOW
Co-Ap Bin
1шт.
24
BN50142
WASHER,5/16", Stainless Steel
10шт.
25
BN50232
BOLT,5/16"-18 x 1.00", Stainless Steel
4шт.
26
BN50234
BOLT,5/16"-18 X 1-1/4", Stainless Steel
2шт.
27
BN50254
BOLT,3/8"-16 x 1", Stainless
2шт.
28
BN50258
BOLT,3/8"-16 X 1.25", Stainless
2шт.
29
BN50648
BOLT,5/8"-11 X 2.00", Stainless Steel
4шт.
30
BN50759
LOCK NUT,3/8"-16, Nylon, Stainless
4шт.
31
BN55216
ROLL PIN
5/32 X 1 1/2, SS
4шт.
32
BN55361
NUT,5/16"-18, Nylon, Stainless
6шт.
33
BN55365
LOCK NUT,5/8"-11, Nylon, Stainless
5шт.
34
BN310648
LIGHT
Group
1шт.
35
BN319646
SENSOR
Assembly, Hopper Level
1шт.
36
BN310644
MOUNTING PLATE
W/M, Bin Lights
1шт.
37
BN50697
BOLT,Hex, 1/4" - 20 x 1/2", SST
4шт.
38
BN55359
LOCK NUT,1/4"-20, SS
4шт.
39
BN319230
COVER
Wire, Hopper Sensor
1шт.
Выбрано товаров: 38
