(02-022) - HYDRAULIC TUBES GROUP, TRIPLE BIN, 37 & 50 CU FT

Запчасти Case IH 438 (02-022) - HYDRAULIC TUBES GROUP, TRIPLE BIN, 37 & 50 CU FT Bin Group

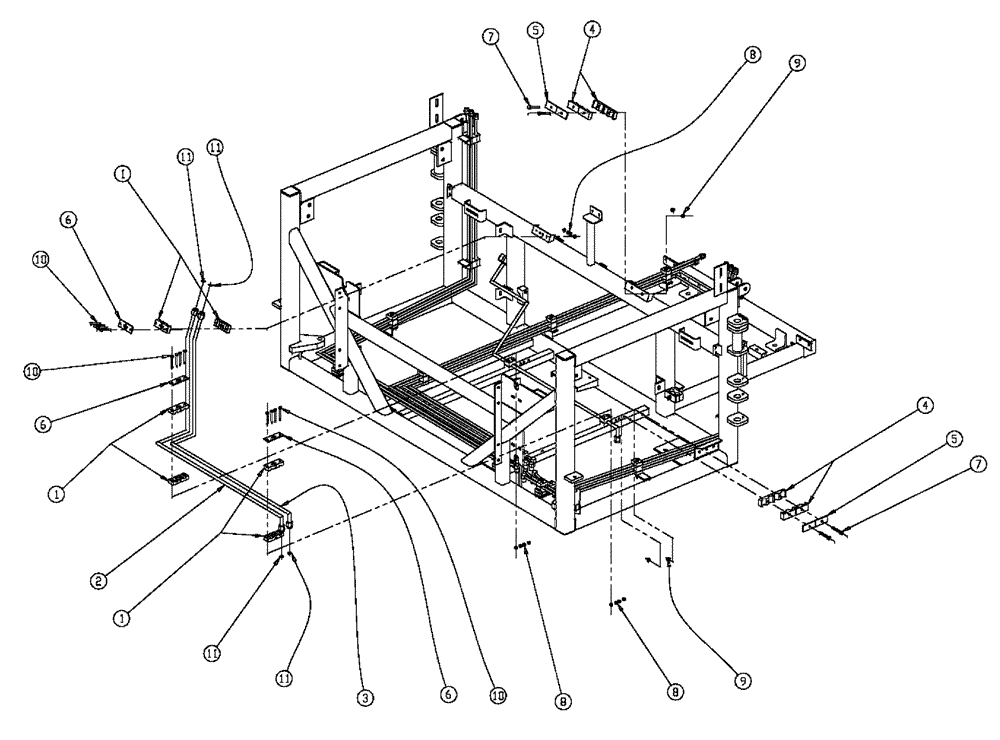

Схема запчастей Case IH 438 - (02-022) - HYDRAULIC TUBES GROUP, TRIPLE BIN, 37 & 50 CU FT Bin Group
1
7
5
5
9
4
7
11
11
6
11
8
9
8
8
10
10
1
6
4
3
2
10
1
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN29783

CLAMP

Single, 1/2" Tube

6шт.

2

BN306982

TUBE

Co-Ap, RH

1шт.

3

BN306983

TUBE

SUPP., RH

1шт.

4

BN307913

CLAMP

Dual, 1/2 Pipe

4шт.

5

BN309484

PLATE

Top Dual, Size 3

4шт.

6

BN309485

PLATE

Top Single, Size 2

6шт.

7

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

4шт.

8

BN55359

LOCK NUT,1/4"-20, SS

12шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

10

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

12шт.

11

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

For - 8 FFOR

4шт.
