(02-021) - HYDRAULIC TUBES GROUP, DOUBLE BIN, 37 & 50 CU FT

Запчасти Case IH 438 (02-021) - HYDRAULIC TUBES GROUP, DOUBLE BIN, 37 & 50 CU FT Bin Group

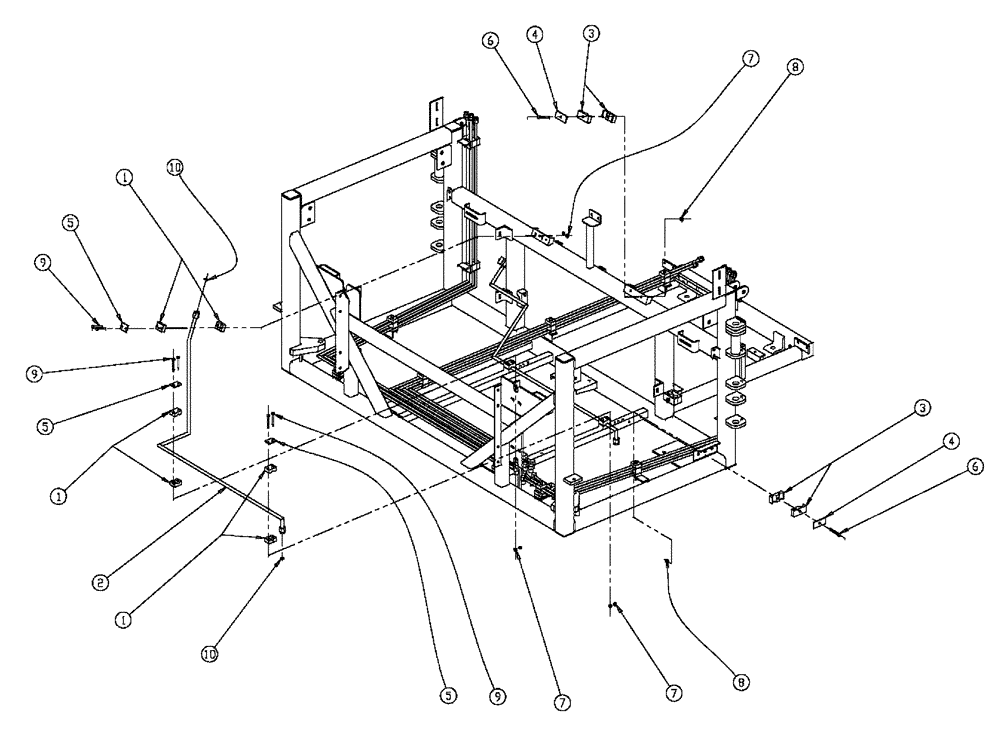

Схема запчастей Case IH 438 - (02-021) - HYDRAULIC TUBES GROUP, DOUBLE BIN, 37 & 50 CU FT Bin Group
5
4
9
7
8
1
8
3
10
7
10
5
9
9
2
5
4
1
3
1
6
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN29783

CLAMP

Single, 1/2" Tube

3шт.

2

BN306982

TUBE

Coap, RH

1шт.

3

BN307913

CLAMP

Dual, 1/2 Pipe

2шт.

4

BN309484

PLATE

Top Dual, Size 3

2шт.

5

BN309485

PLATE

Top Single, Size 2

3шт.

6

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

2шт.

7

BN55359

LOCK NUT,1/4"-20, SS

6шт.

8

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

9

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

6шт.

10

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

For - 8 FFOR

2шт.
