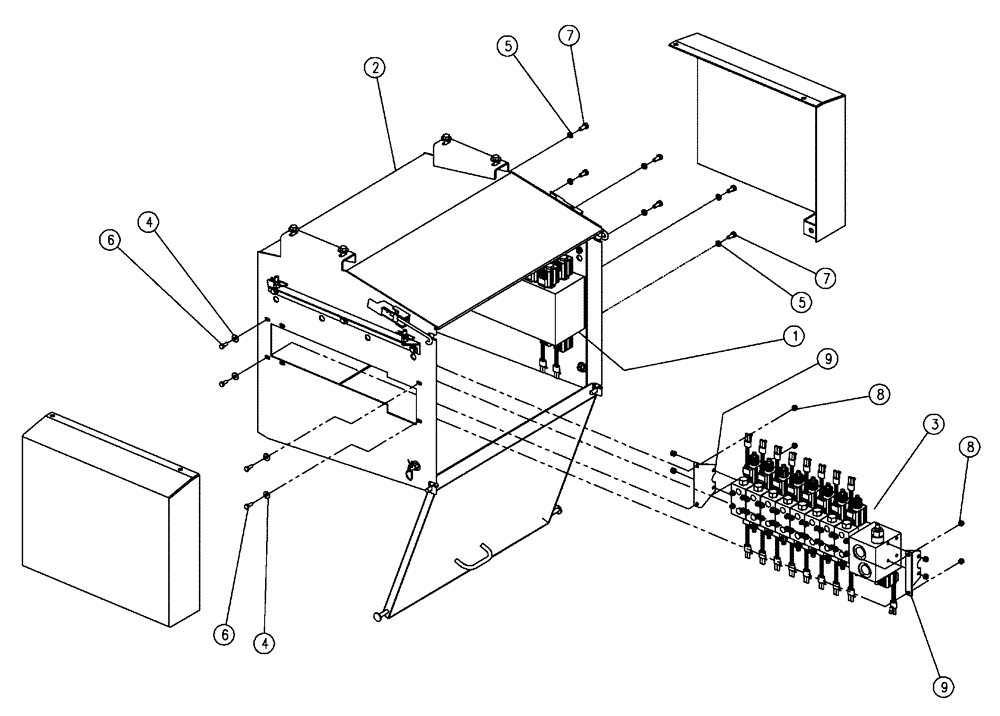

Запчасти Case IH 438 (02-017) - VALVE BOX GROUP, DOUBLE BIN W/AUGER Bin Group

1

BN323211

HYDRAULIC VALVE

Block, Double W/AUG

1шт.

See Fig. 07-013

1шт.

2

BN318056

Valve Box

1шт.

See Fig. 02-015

1шт.

3

86986498

VALVE

Control 8 Bank CR

1шт.

See Fig. 07-014

1шт.

4

BN50138

WASHER,1/4", SS

4шт.

5

BN50144

LOCK WASHER

5/16, LW, SS

6шт.

6

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

7

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

8

BN55359

LOCK NUT,1/4"-20, SS

4шт.

9

BN67858

MOUNTING PARTS

Waterman Valve

2шт.
