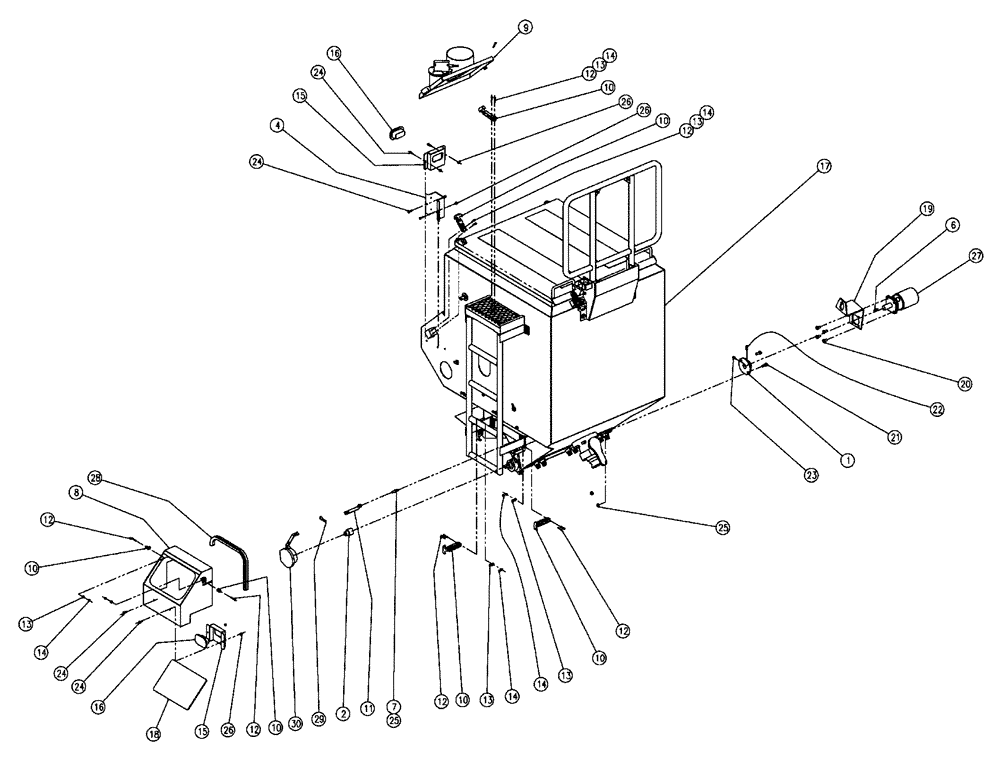

Запчасти Case IH 438 (02-011) - PARTS GROUP, DOUBLE BIN W/AUGER, LH, 50 CU FT Bin Group

2

BN22884

KIT

Adaptor

1шт.

3

BN21398A

COUPLING

Machined

1шт.

4

86986421

BRACKET

Sensor Control

1шт.

6

BN30283

STOP

1/4 SQ. Keystock x 1

1шт.

7

BN307047

PIN

3/8 With Shoulder

1шт.

8

BN308144

COVER

Wind, LH

1шт.

9

86986419

COVER

LH Bin (Sensor)

1шт.

See Fig. 02-053

1шт.

10

BN309337

LATCH

Flexible Draw

2шт.

11

BN312519

BRACKET

Bracket, Rate

1шт.

12

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10 - 24 X 1.25, BSH, SS

10шт.

13

BN310265

WASHER

10, Stainless Steel

10шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

10шт.

15

BN310644

MOUNTING PLATE

Bin Lights

2шт.

16

BN310648

LIGHT

Group

2шт.

See Fig. 02-051

1шт.

17

87266490

Bin, LH Double - (50)

1шт.

See Fig. 02-034

1шт.

18

87265980

WINDOW

Hopper 12" x 8"

1шт.

19

BN35939

ARM

Torque - Co-Ap, LH

1шт.

20

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

21

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

22

BN50421

SET SCREW

5/16" - 18 X 1/2"

1шт.

23

BN50473

SET SCREW

5/16"-18 X 3/4"

1шт.

24

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

26

BN55359

LOCK NUT,1/4"-20, SS

6шт.

27

BN65718

HYDRAULIC MOTOR

Ross MG1

1шт.

See Fig. 07-018

1шт.

28

BN67438

SEAL

Weather Strip, Wind Cover

1шт.

29

BN71007

CLIP,3/16" Hairpin

Hairpin - 3/16"#8

1шт.

30

BN314948

SENSOR

Assembly, APPLIC. Rate

1шт.
