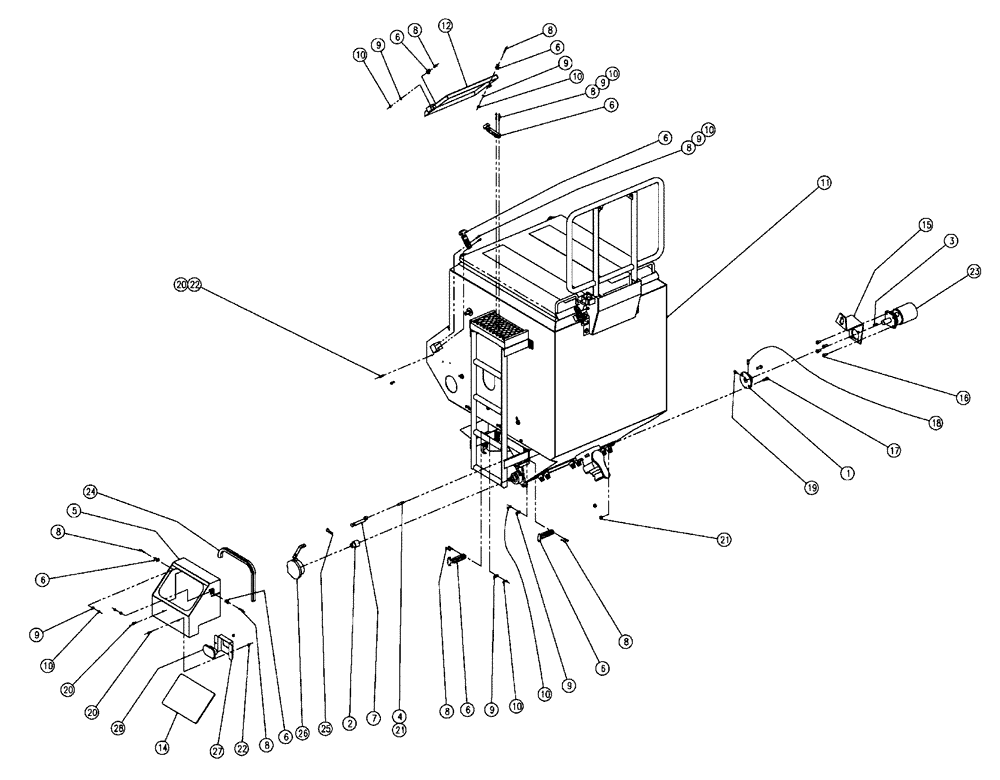

Запчасти Case IH 438 (02-009) - PARTS GROUP, DOUBLE BIN, LH, 50 CU FT Bin Group

1

BN21398A

COUPLING

Machined

1шт.

2

BN22884

KIT

Adaptor

1шт.

3

BN30283

STOP

1/4 SQ. Keystock x 1

1шт.

4

BN307047

PIN

3/8 With Shoulder

1шт.

5

BN308144

COVER

W/M, Wind, LH

1шт.

6

BN309337

LATCH

Flexible Draw

4шт.

7

BN312519

BRACKET

Bracket W/M, Rate

1шт.

8

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10 - 24 X 1.25, BSH, SS

12шт.

9

BN310265

WASHER

10, Stainless Steel

12шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

12шт.

11

87266490

Bin, LH Double - (50), See Fig 02 - 034

1шт.

12

BN310845

COVER

W/M, Double, LH

1шт.

14

87265980

WINDOW

Hopper 12" x 8"

1шт.

15

BN35939

ARM

Torque - Co-Ap, LH

1шт.

16

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

17

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

18

BN50421

SET SCREW

5/16" - 18 X 1/2"

1шт.

19

BN50473

SET SCREW

5/16"-18 X 3/4"

1шт.

20

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

21

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

22

BN55359

LOCK NUT,1/4"-20, SS

4шт.

23

BN65718

HYDRAULIC MOTOR

Ross MG1, See Fig 07 - 018

1шт.

24

BN67438

SEAL

Weather Strip, Wind Cover

1шт.

25

BN71007

CLIP,3/16" Hairpin

Hairpin - 3/16"#8

1шт.

26

BN314948

SENSOR

Assembly, APPLIC. Rate

1шт.

27

BN310644

MOUNTING PLATE

W/M, Bin Lights

1шт.

28

BN310648

LIGHT

Group, See Fig 02 - 051

1шт.
