Запчасти Case IH 438 (02-007) - PARTS GROUP, TRIPLE BIN, LH, 37 CU FT Bin Group

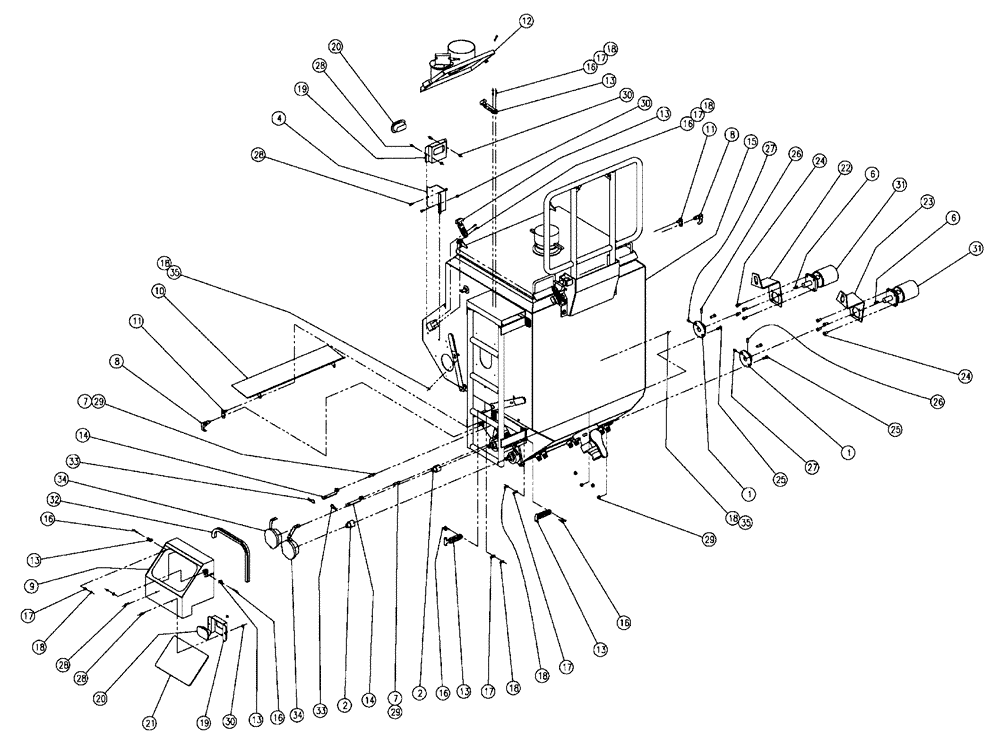

Схема запчастей Case IH 438 - (02-007) - PARTS GROUP, TRIPLE BIN, LH, 37 CU FT Bin Group
33
29
1
11
19
29
25
30
27
15
28
13
19
13
16
34
8
28
18
13
27
28
14
11
2
18
9
24
20
21
23
17
29
22
17
16
31
28
35
24
25
7
12
17
26
17
18
14
26
13
13
16
30
1
18
10
20
4
18
6
32
7
16
18
35
34
17
16
31
2
13
6
16
18
30
33
8

Артикул

Название

Примечание

Количество

1

BN21398A

COUPLING

Machined

2шт.

2

BN22884

KIT

Adaptor

2шт.

4

86986421

BRACKET

Sensor Control

1шт.

6

BN30283

STOP

1/4 SQ. Keystock x 1

2шт.

7

BN307047

PIN

3/8 With Shoulder

2шт.

8

342478A1

LATCH

Swell

2шт.

9

BN308144

COVER

Wind, LH

1шт.

10

BN308146

COVER

Co-Ap, Lower

1шт.

11

BN308147

PIN

Lower Cover Pivot

2шт.

12

86986419

COVER

LH Bin (Sensor)

1шт.

See Fig. 02-053

1шт.

13

BN309337

LATCH

Flexible Draw

2шт.

14

BN312519

BRACKET

Bracket, Rate

2шт.

15

87265018

Bin Group, LH Triple - (37)

1шт.

See Fig. 02-007

1шт.

16

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10 - 24 X 1.25, BSH, SS

10шт.

17

BN310265

WASHER

10, Stainless Steel

10шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

14шт.

19

BN310644

MOUNTING PLATE

Bin Lights

2шт.

20

BN310648

LIGHT

Group

2шт.

See Fig. 02-051

1шт.

21

87265980

WINDOW

Hopper 12" x 8"

1шт.

22

BN35938

ARM

Torque - Co-Ap, RH

1шт.

23

BN35939

ARM

Torque - Co-Ap, LH

1шт.

24

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

8шт.

25

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

26

BN50421

SET SCREW

5/16" - 18 X 1/2"

2шт.

27

BN50473

SET SCREW

5/16"-18 X 3/4"

2шт.

28

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

29

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

30

BN55359

LOCK NUT,1/4"-20, SS

6шт.

31

BN65718

HYDRAULIC MOTOR

Ross MG1

2шт.

See Fig. 07-018

1шт.

32

BN67438

SEAL

Weather Strip, Wind Cover

1шт.

33

BN71007

CLIP,3/16" Hairpin

Hairpin - 3/16"#8

2шт.

34

BN314948

SENSOR

Assembly, APPLIC. Rate

2шт.

35

BN9990114

STRAP

Ty Rap, "Eye Ty" 06205 3M

4шт.

Выбрано товаров: 37
