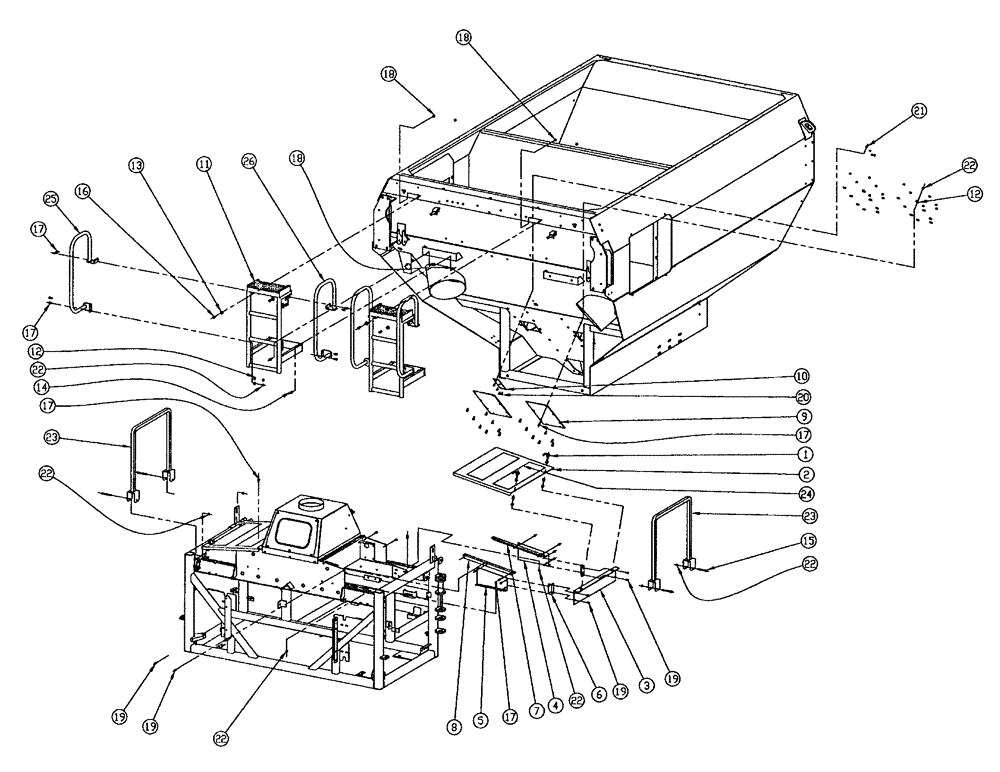

Запчасти Case IH 438 (02-001) - PARTS GROUP, SINGLE BIN Bin Group

1

342478A1

LATCH

Swell

4шт.

2

BN307755

COVER

Single Bin

2шт.

3

BN307756

COVER

End, Support

2шт.

4

BN307757

COVER

Side, Support, RH

2шт.

5

BN307758

COVER

Side, Support, LH

2шт.

6

BN307759

COVER

Angle, End, Support

4шт.

7

BN307760

COVER

Angle, Side, Sprt, RH

2шт.

8

BN307762

COVER

Angle, Side, Sprt, LH

2шт.

9

BN309886

COVER

Aux Auger Hole

2шт.

10

BN309887

COVER

Sensor Hole

1шт.

11

BN313700

LADDER

W/M, Single Bin

2шт.

12

BN50142

WASHER,5/16", Stainless Steel

20шт.

13

BN50146

WASHER,3/8", Stainless

4шт.

14

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

15

BN50242

BOLT,5/16"-18 X 3-1/4", Stainless Steel

4шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

17

BN50476

BOLT,5/16"-18 x 0.75", Stainless

18шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

19

BN313961

SCREW,Hex, 1/4" x 3/4", SST

1/4" X 3/4", HH, STP, SS

32шт.

20

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

21

BN55359

LOCK NUT,1/4"-20, SS

4шт.

22

BN55361

NUT,5/16"-18, Nylon, Stainless

26шт.

23

BN65393

HANDRAIL

W/M, Flex - Air®

2шт.

24

BN65578

STRIP

Safety - Walk - Flextred, 6 X 26

4шт.

25

BN313701

HANDRAIL

W/M, Single, LH

2шт.

26

BN313702

HANDRAIL

W/M, Single, RH

2шт.
