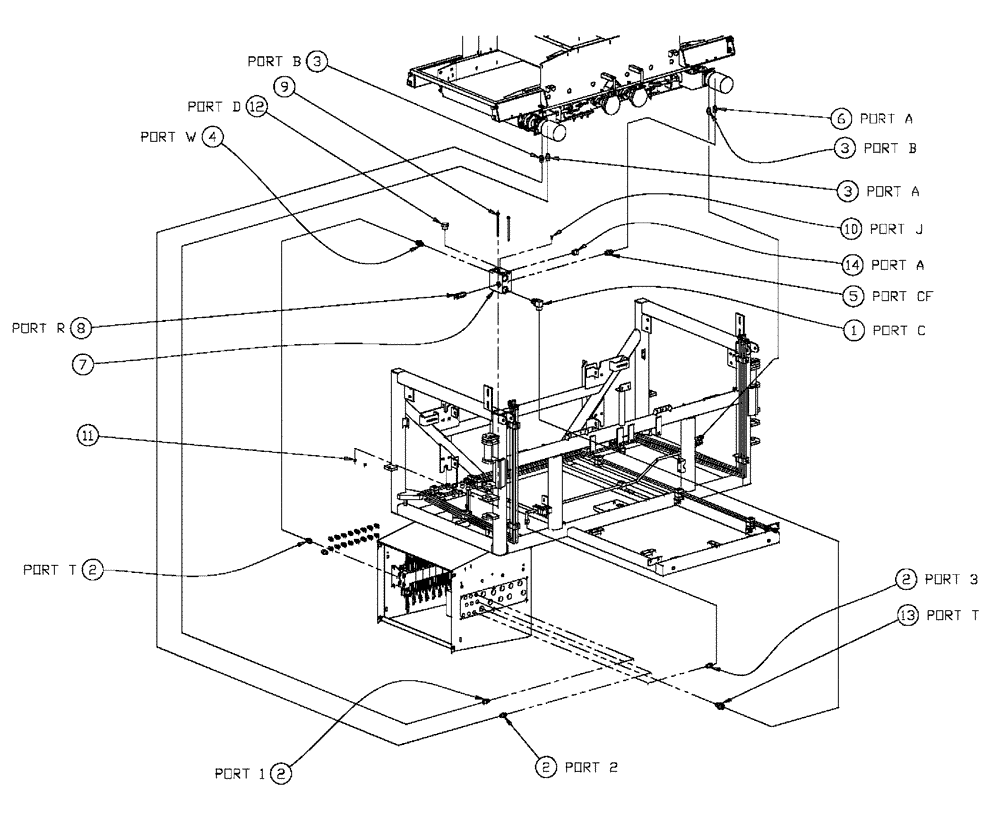

Запчасти Case IH 438 (01-011) - CONVEYORS HYDRAULIC GROUP Basic Unit

1

BN302574

ELBOW

16MOR - 16MBX90

1шт.

1a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

O-ring boss end

1шт.

1b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

2

BN302650

FITTING

8MOR - 8MB

4шт.

3

BN302651

FITTING

8MOR - 10MB

3шт.

4

BN302652

FITTING

8MOR - 12MB

1шт.

5

BN302655

FITTING

12MOR - 12MB

1шт.

6

BN305057

FITTING

12MOR - 10MB

1шт.

7

BN306910

MANIFOLD

Waterman Return

1шт.

8

BN307940

VALVE PRESSURE RELIE

Relief, Dast

1шт.

9

BN309845

SCREW,Hex, 5/16" - 18 x 5", SST

2шт.

10

BN446048

PLUG

Hex, O - Ring, - 6, 9/16 - 18

1шт.

11

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

12

BN60479

PLUG

1 5/16 - 12 O - Ring - Hex

1шт.

13

BN57223

FITTING

16MOR - 16MB

1шт.

14

9841223

PLUG,1-1/16" - 12 ORB

1шт.
