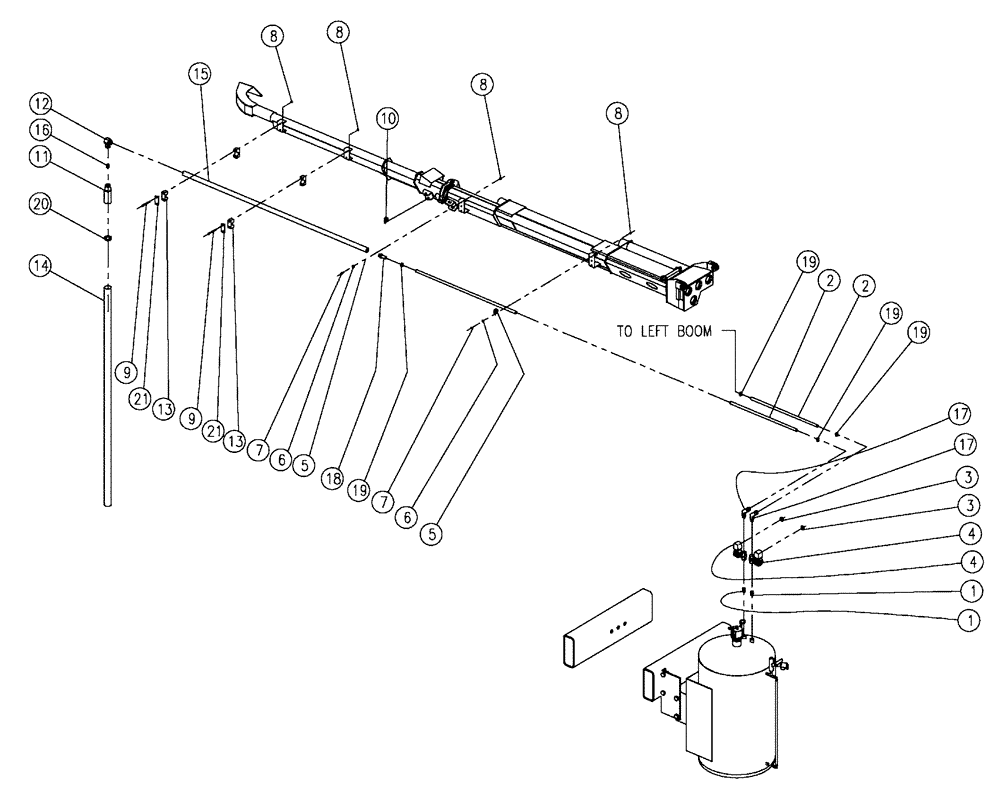

Запчасти Case IH 438 (10-003) - FOAM TUBE GROUP, FLEX-AIR®, 70’ (16) - FOAM MARKER

1

BN1420061

LUBE NIPPLE

LUBRICATOR 1/2 X Close 304SS

2шт.

2

BN22495

HOSE,0.75" ID x 480.00"

2шт.

3

BN2290745

GROMMET

2864 (5/8" Hole)

2шт.

4

BN2392269

SOLENOID VALVE

A414P12DC

2шт.

5

515-21254

CLAMP

Vinyl Coated 1"

14шт.

6

BN50138

WASHER,1/4", SS

14шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

14шт.

8

BN55359

LOCK NUT,1/4"-20, SS

22шт.

9

BN55381

BOLT

1/4 - 20 X 3.25, HH, SS

8шт.

10

BN57232

CLAMP

Vinyl Coated 1" DIA.

2шт.

11

BN65579

TUBE

W/M, Drop Hose

2шт.

12

BN65580

FITTING

Swivel - Joint, 3/4MNPT - 3/4 FNPT

2шт.

13

BN67054

CLAMP

1.315" OD

4шт.

14

BN68189

HOSE

2" ID x 50"

2шт.

15

BN68934

TUBE

W/M, Foam Marker

2шт.

16

BN73160

FITTING

NP, 3/4" NPT Close, SS

2шт.

17

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

2шт.

18

BN73561

FITTING

Barb, 3/4 NPT X 3/4 HS

2шт.

19

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

20

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

21

BN309483

PLATE

Clamp Top, Single Clamp

4шт.
