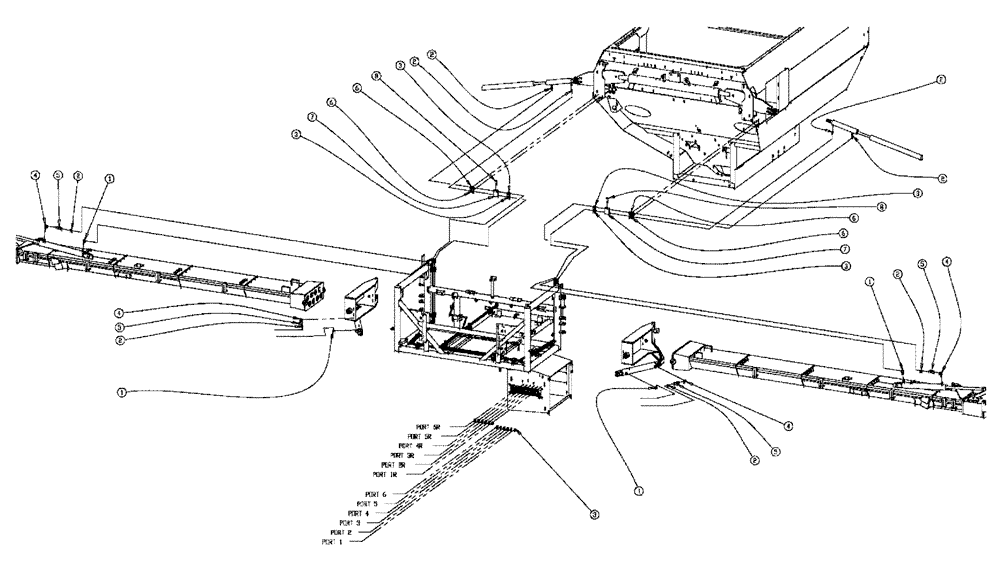

Запчасти Case IH 438 (01-010) - BOOMS HYDRAULIC GROUP Basic Unit

1

BN302549

ELBOW

4MOR - 6MBX90

4шт.

2

BN302641

FITTING

4MOR - 6MB

8шт.

3

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

16шт.

4

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

4a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

4b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

BN313268

ORIFICE

.042 -6 Disk

2шт.

6

BN310466

FIP KIT

6MORBH - 6MB

4шт.

7

BN66796

BLOCK

Relief, Boom Lift

2шт.

8

BN98227

VALVE

Check, 30 LB Waterman

2шт.

9

BN305412

O-RING

6 FFOR

2шт.
