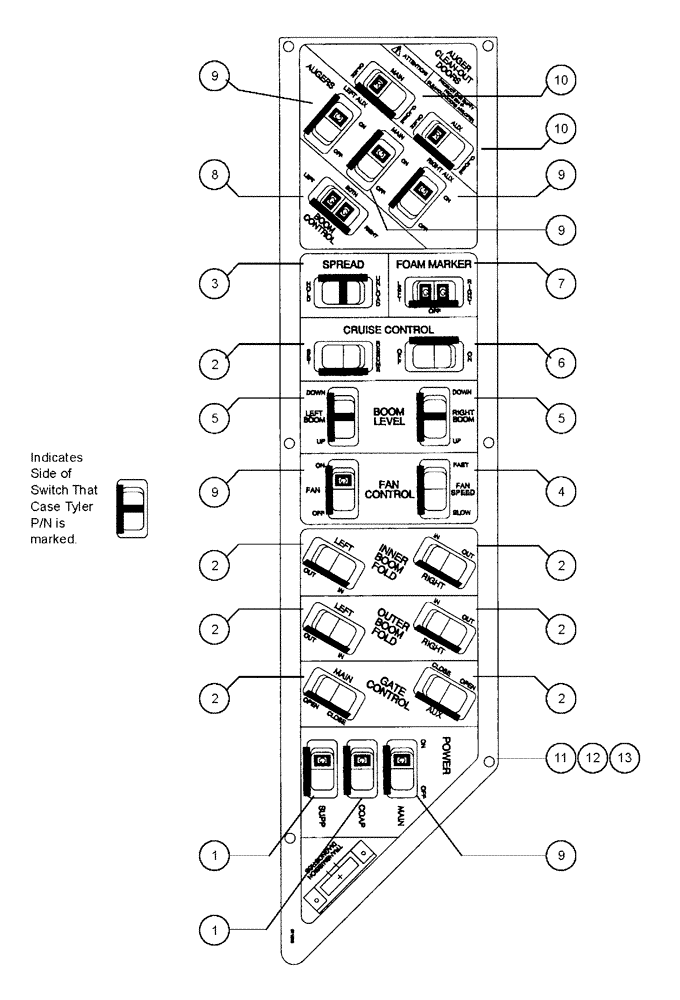

Запчасти Case IH 438 (14-001) - FLEX-AIR® CONTROL PANEL (06) - ELECTRICAL

1

BN310464

SWITCH

DPST, On - None - Off

2шт.

2

BN310461

SWITCH

DPDT, (On) - Off - (On)

7шт.

3

BN310459

SWITCH

DPDT, (On) - Off - On

1шт.

4

BN310640

SWITCH

DPDT, (On) - Off - (On)

1шт.

5

BN310462

SWITCH

DPDT, (On) - Off - (On)

2шт.

6

BN310463

SWITCH

DPDT, On - None - On

1шт.

7

BN310460

SWITCH

DPDT, On - Off

1шт.

8

BN310465

SWITCH

DPDT, On - Off - On

1шт.

9

BN310458

SWITCH

SPST, On - None - Off

5шт.

10

BN313883

SWITCH

DPDT, On-None-On

2шт.

11

BN311112

RIVET

1/4"-20 x .75, BHCS

6шт.

12

BN311215

PANEL

Weldment, Dash

1шт.

13

BN311218

DECAL

Panel, Dash

1шт.
