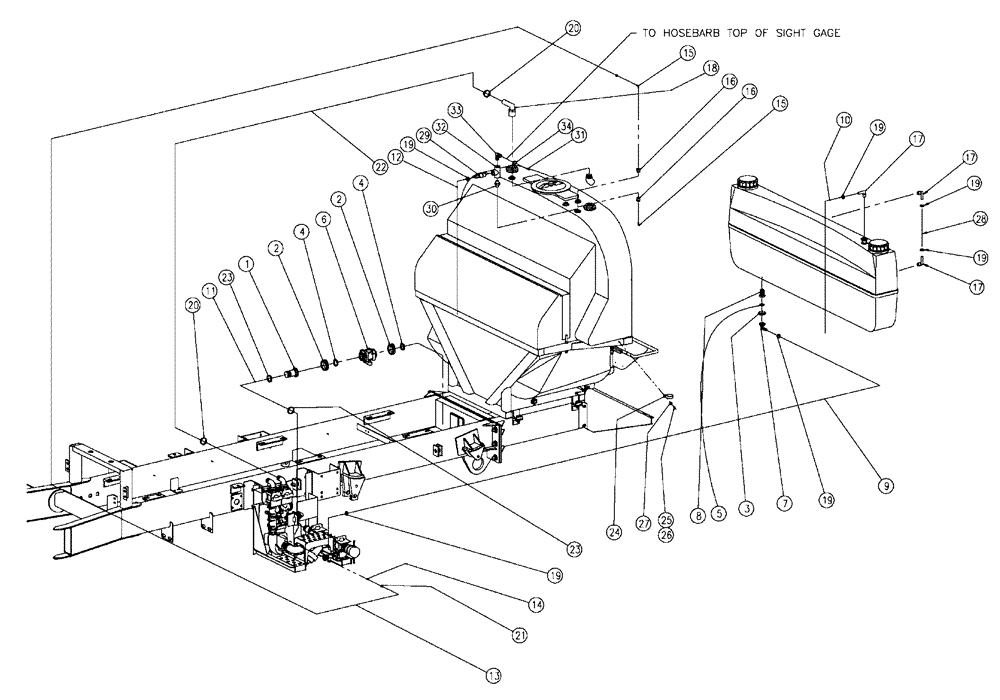

Запчасти Case IH 438 (11-028) - TANK HOSE GROUP, FLEX-AIR®, 60’ & 70’ Wet Kit

1

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

2

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

3

BN303203

CLAMP,1" Flange

1" Flange Manifold

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

5

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

6

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, W/T Handle

1шт.

7

405785A1

ELBOW

poly 90º 1" flange x 3/4" hb

1шт.

8

BN306903

MANIFOLD,1" Flange x 1" Male NPT, Poly

STR 1" X 1" Male

1шт.

9

BN310324

3/4" EPDM X 190"

1шт.

10

BN53766

3/4" EPDM X 92.0"

1шт.

11

BN53825

HOSE

2" ID X 10 FT - Suction

1шт.

12

BN53931

HOSE,130.00"

1шт.

13

BN67333

HOSE

1/4" EPDM X 204"

1шт.

14

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

15

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

2шт.

16

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

2шт.

17

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

3шт.

18

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

19

BN310446

HOSE CLAMP

#12, Stainless Steel

6шт.

20

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

21

BN310450

HOSE CLAMP

#3, Stainless Steel

2шт.

22

BN315701

HOSE

1.5 X 214" EPDM

1шт.

23

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

24

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

25

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

26

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.

27

BN50142

WASHER,5/16", Stainless Steel

1шт.

28

BN319020

HOSE,0.75" ID x 21.00"

Clear Vinyl

1шт.

29

BN73561

FITTING

Barb, 3/4 NPT X 3/4 HS

1шт.

30

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

31

BN324795

HOSE,1.00" ID x 52.00"

Clear

1шт.

32

BN73560

TEE

3/4" NPT, Poly

1шт.

33

BN73575

FITTING

Barb, 3/4" X 1" SHK x 90º

1шт.

34

BN310447

HOSE CLAMP

#20, Stainless Steel

1шт.
