(11-024) - SPARGE GROUP, FLEX LIQUID, 60’ & 70’

Запчасти Case IH 438 (11-024) - SPARGE GROUP, FLEX LIQUID, 60’ & 70’ Wet Kit

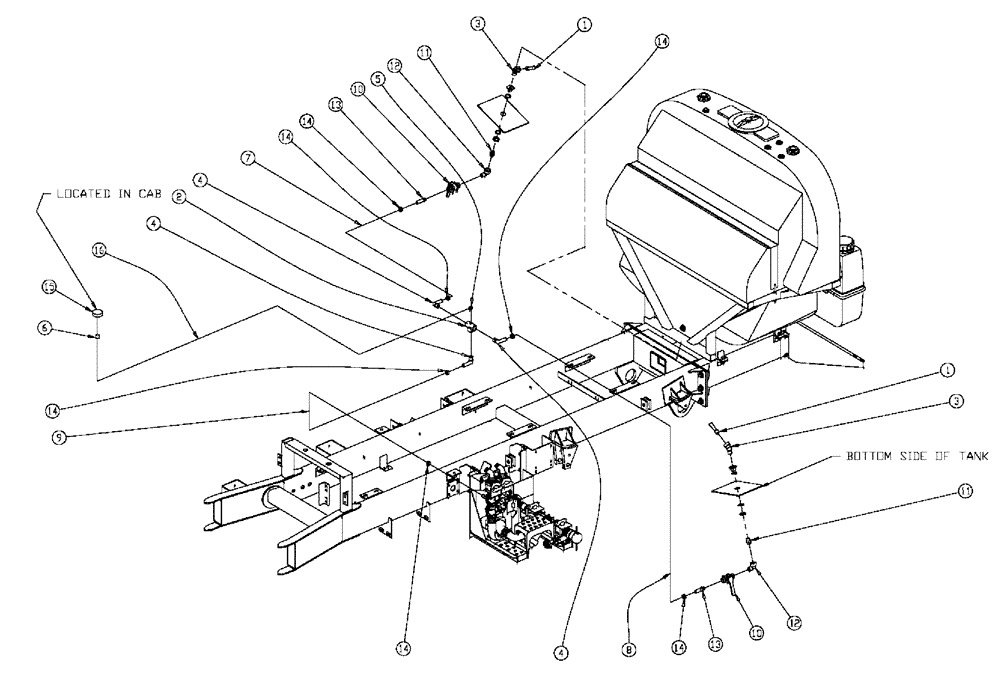

Схема запчастей Case IH 438 - (11-024) - SPARGE GROUP, FLEX LIQUID, 60’ & 70’ Wet Kit
11
5
9
14
7
10
8
14
12
15
6
1
13
4
11
1
16
12
4
14
13
3
14
14
10
14
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN310059

NOZZLE

Nozzle, Sparge

2шт.

2

BN310060

TEE

1", Poly W/1/4" Port

1шт.

3

BN310061

ELBOW,3/4" 45 Degree Poly Street Elbow

Elbow, 45 Street, 3/4", Poly

2шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

5

BN53733

ADAPTER

1/4 NPT x 9/16 JIC

1шт.

6

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

7

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

1шт.

8

BN53756

HOSE,42.00"

1шт.

9

BN53820

EPDM 1" ID x 92"

1шт.

10

BN73564

VALVE

3/4" Ball Poly 2 Way

2шт.

11

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

12

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

13

BN73569

FITTING

Hosebarb - 3/4 NPT X 1 Hose

2шт.

14

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

15

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

16

BN29999

HOSE

3/8" id EPDM x 260"

1шт.
