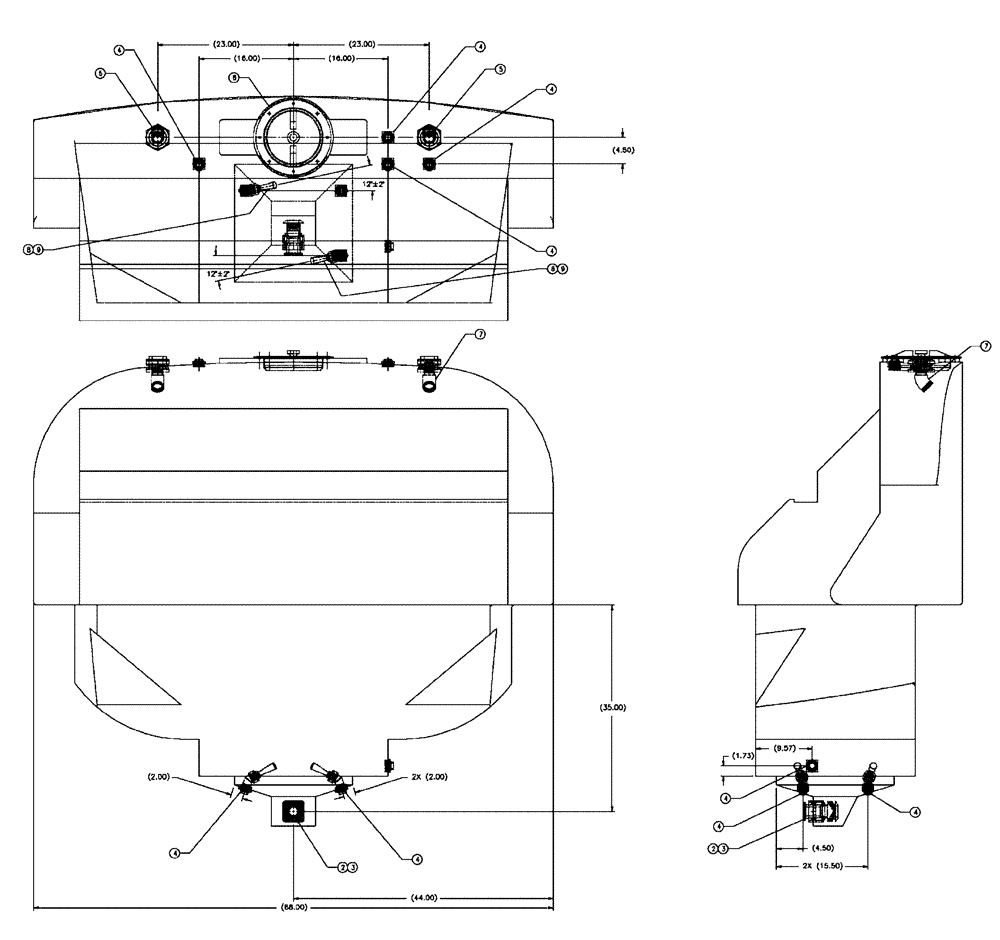

Запчасти Case IH 438 (11-020) - TANK GROUP, 500 GALLON, FLEX-GRAY Wet Kit

1

BN301612

500, Rework 301611

1шт.

2

BN309799

COVER

Vent, Anti - Vortex, 2"

1шт.

3

BN309800

FLANGE

Bottom Drain Bolt

1шт.

4

BN73563

BULKHEAD

Fitting - 3/4"

8шт.

5

BN73733

FITTING

1 1/2" Bulkhead

2шт.

6

BN98288

COVER

10", For 500-750 Tank

1шт.

7

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

2шт.

8

BN310059

NOZZLE

Sparge 9/32

2шт.

9

BN310061

ELBOW,3/4" 45 Degree Poly Street Elbow

Elbow, 45 Street, 3/4", Poly

2шт.

10

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

2шт.

11

85700693

NUT,5/8" - 11, Gr C

4шт.

12

BN313866

BELT,4.00" W x 33.00" L

2шт.

13

BN313897

5 Oz. Tube

1шт.
