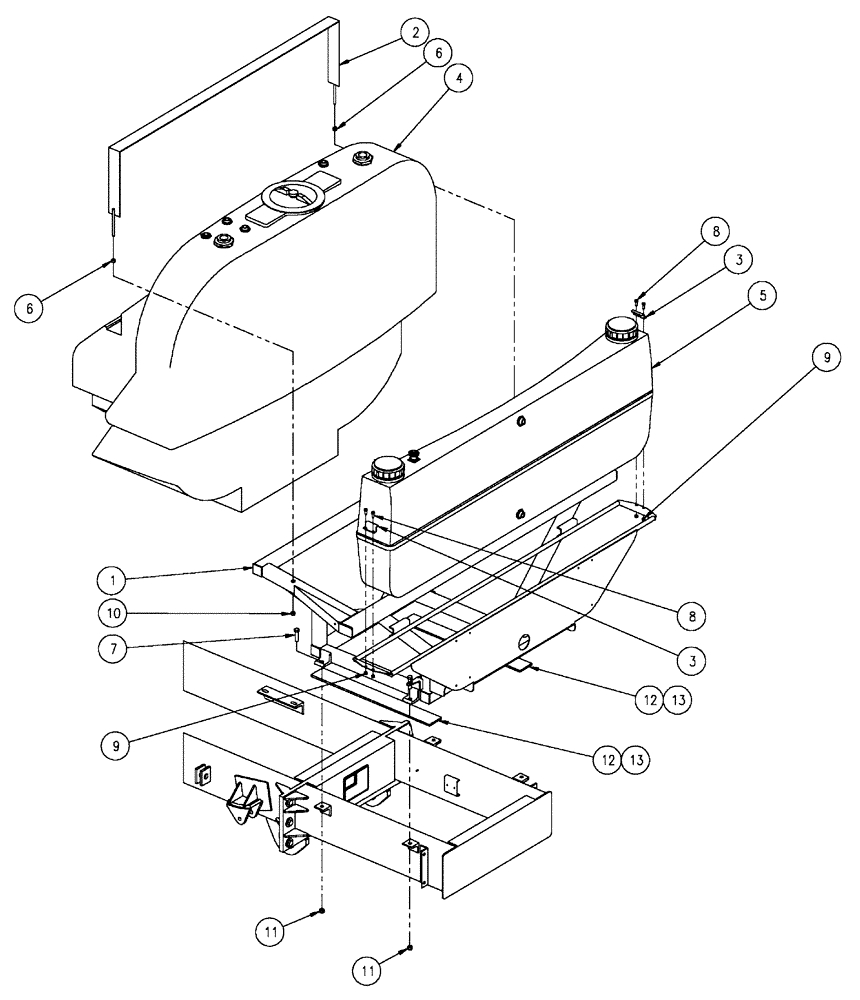

Запчасти Case IH 438 (11-019) - TANKS AND CRADLES GROUP, 60’ & 70’ Wet Kit

1

86986603

CRADLE

Tank, 75 & 500

1шт.

2

BN303429

STRAP

Tank

1шт.

3

86986604

PLATE

Tank Hold Down

2шт.

4

BN309281

TANK

Group, 500 GL. Flex - Gray

1шт.

See Fig. 11-020

1шт.

5

BN309282

TANK

75 Gallon, Flex-Gray

1шт.

See Fig. 11-021

1шт.

6

BN50071

NUT,1/2"-13, Stainless

2шт.

7

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

4шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

10

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

2шт.

11

85700693

NUT,5/8" - 11, Gr C

4шт.

12

BN313866

BELT,4.00" W x 33.00" L

2шт.

13

BN313897

5 Oz. Tube

1шт.
