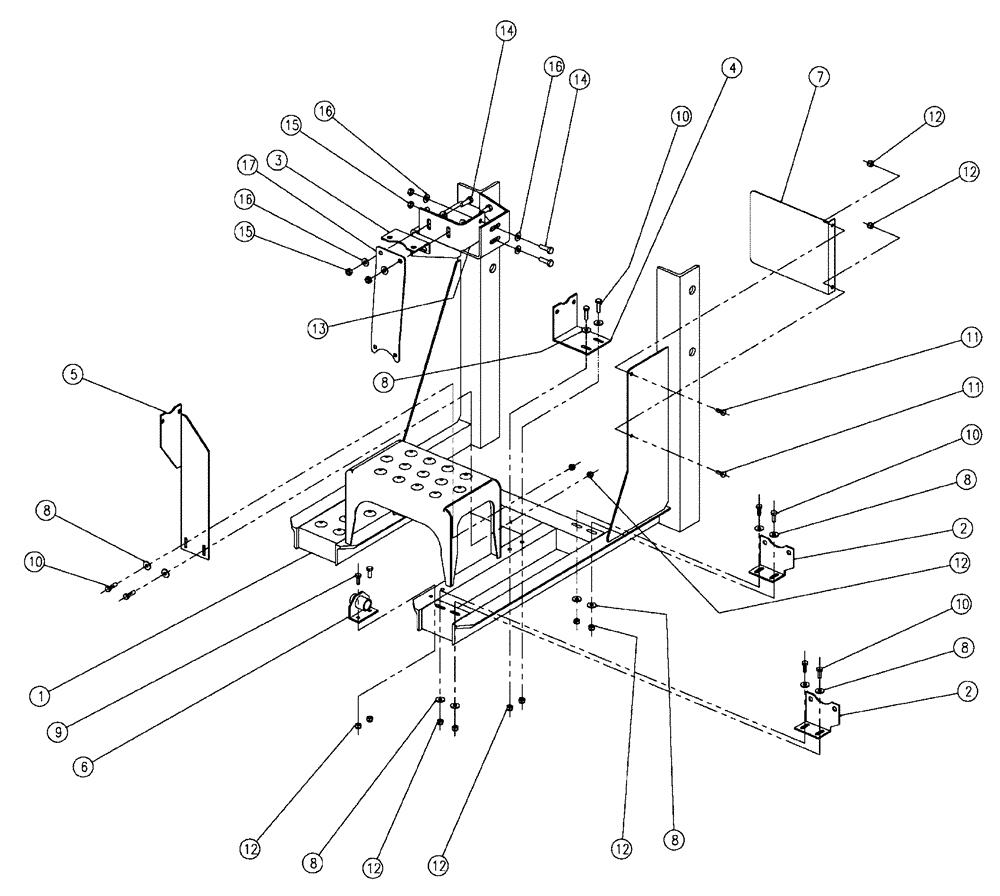

Запчасти Case IH 438 (11-017) - PUMP STATION GROUP BRACKET, 60’ & 70’ Wet Kit

1

BN319418

BRACKET, SUPPORTING

Pump, W/M

1шт.

2

BN304424

BRACKET

2" Valve, Lower

2шт.

3

BN319416

MOUNTING PLATE

Ball Valve

1шт.

4

BN304426

BRACKET

1" Valve, Lower

1шт.

5

87267528

PLATE

1" Valve Mount

1шт.

6

BN304465

BRACKET

W/M, Water Valve

1шт.

7

BN321001

PLATE

MTG. - Decal (SS)

1шт.

8

BN50138

WASHER,1/4", SS

12шт.

9

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

10

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

11

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

2шт.

12

BN55359

LOCK NUT,1/4"-20, SS

12шт.

13

BN319417

MOUNT

Mount, Ball Valve Mount

1шт.

14

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

15

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

16

BN50142

WASHER,5/16", Stainless Steel

8шт.

17

343165A1

PLATE

1" Valve Mount

1шт.
