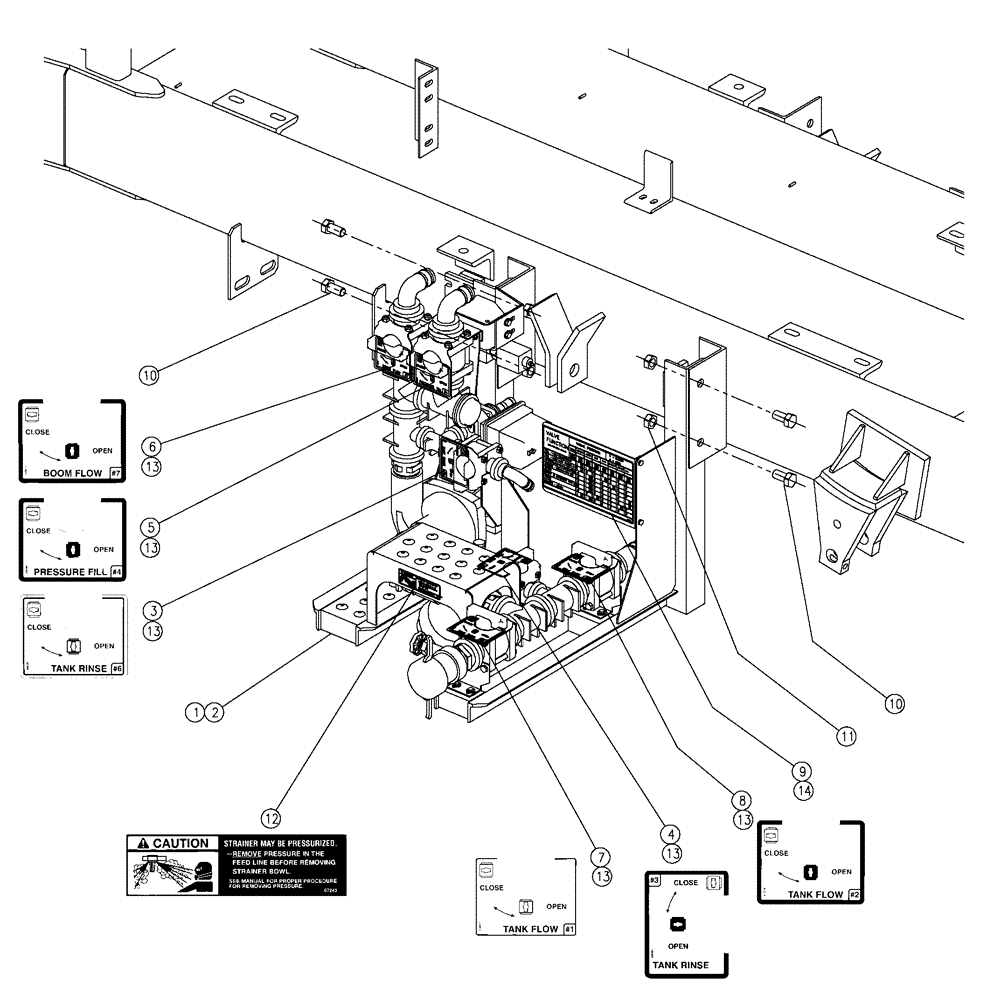

Запчасти Case IH 438 (11-016) - PUMP STATION GROUP, 60’ & 70’ Wet Kit

1

BN304605

Pump Station, Brackets, See Fig 11-017

1шт.

2

BN304622

Pump Station, Valves, See Fig 11-018

1шт.

3

BN306582

DECAL

Tank Rinse

1шт.

4

BN306583

DECAL

Tank Rinse

1шт.

5

BN306585

DECAL

Pressure Fill

1шт.

6

BN310013

DECAL

Boom Flow

1шт.

7

BN310017

DECAL

Tank Fill, Outside

1шт.

8

BN310018

DECAL

Tank Fill, Inside

1шт.

9

BN310019

DECAL

Valve Control

1шт.

10

BN50330

BOLT

3/4 - 10 X 1.5, HH, 5, Black

4шт.

11

280375

NUT,3/4"-10, GC

4шт.

12

BN67243

DECAL

Strainer Pressure

1шт.

13

342511A1

DECAL

overlay, valve function

6шт.

14

342512A1

DECAL

overlay, valve control

1шт.
