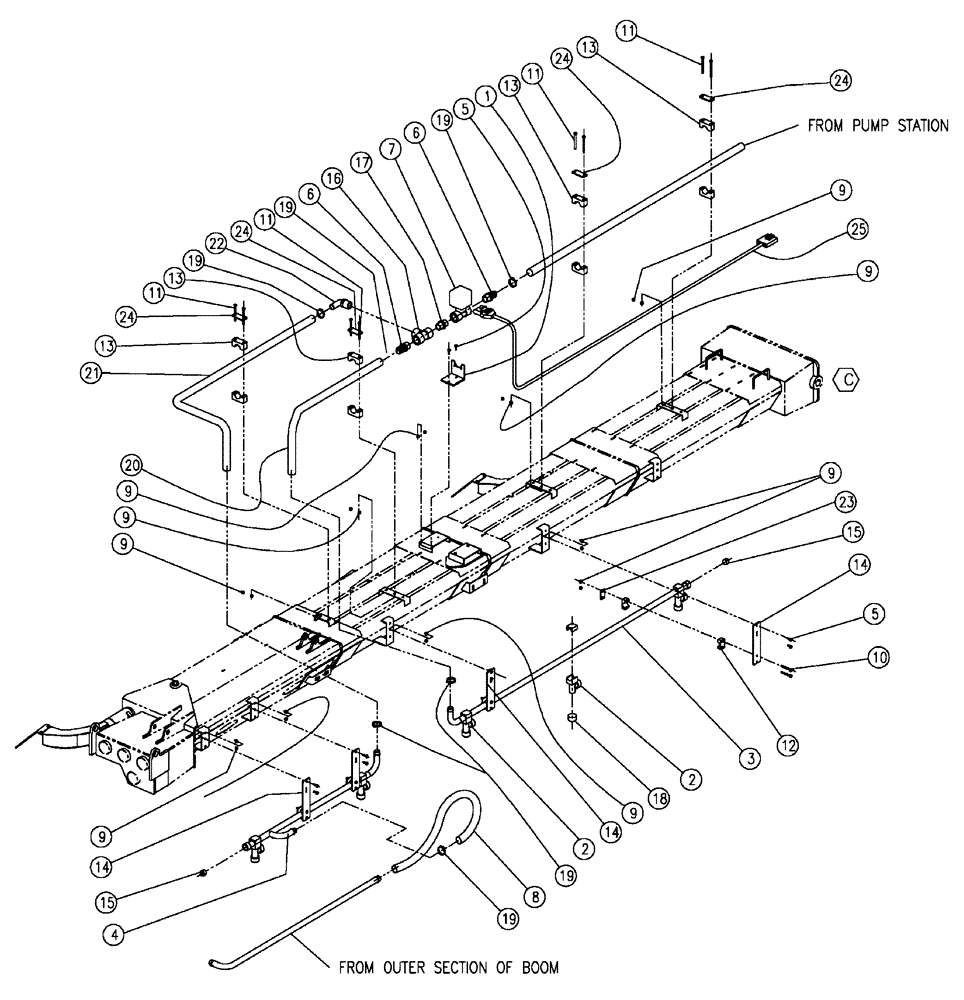

Запчасти Case IH 438 (11-006) - WET BOOM, 2.5”, RH, INNER, 70’ Wet Kit

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

2

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

4шт.

3

BN303268

BAR

Spray W/M, Inner

1шт.

4

BN315385

BAR

S - W/M, Inner, End, RH, 70

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

10шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

87389559

VALVE

Electric, 1" Ball

1шт.

8

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

9

BN55359

LOCK NUT,1/4"-20, SS

26шт.

10

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

11

BN55381

BOLT

1/4 - 20 X 3.25, HH, SS

8шт.

12

BN65324

CLAMP

1" OD, Poly

4шт.

13

BN67494

CLAMP

Single, 1.5 DIA.

4шт.

14

BN68981

BRACKET

Spray Bar

4шт.

15

BN73553

PLUG

3/4" NPT, Poly

2шт.

16

BN73629

TEE

1" Poly Pipe

1шт.

17

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

18

BN74619

CAP

W/Gasket Tee Jet Black

4шт.

19

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

20

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

1шт.

21

BN53759

1" EPDM x 72.0"

1шт.

22

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

23

BN311249

PLATE

Top, Single, Size 3

4шт.

24

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

25

BN313987

WIRE HARNESS

Ball Valve EXT.

1шт.
