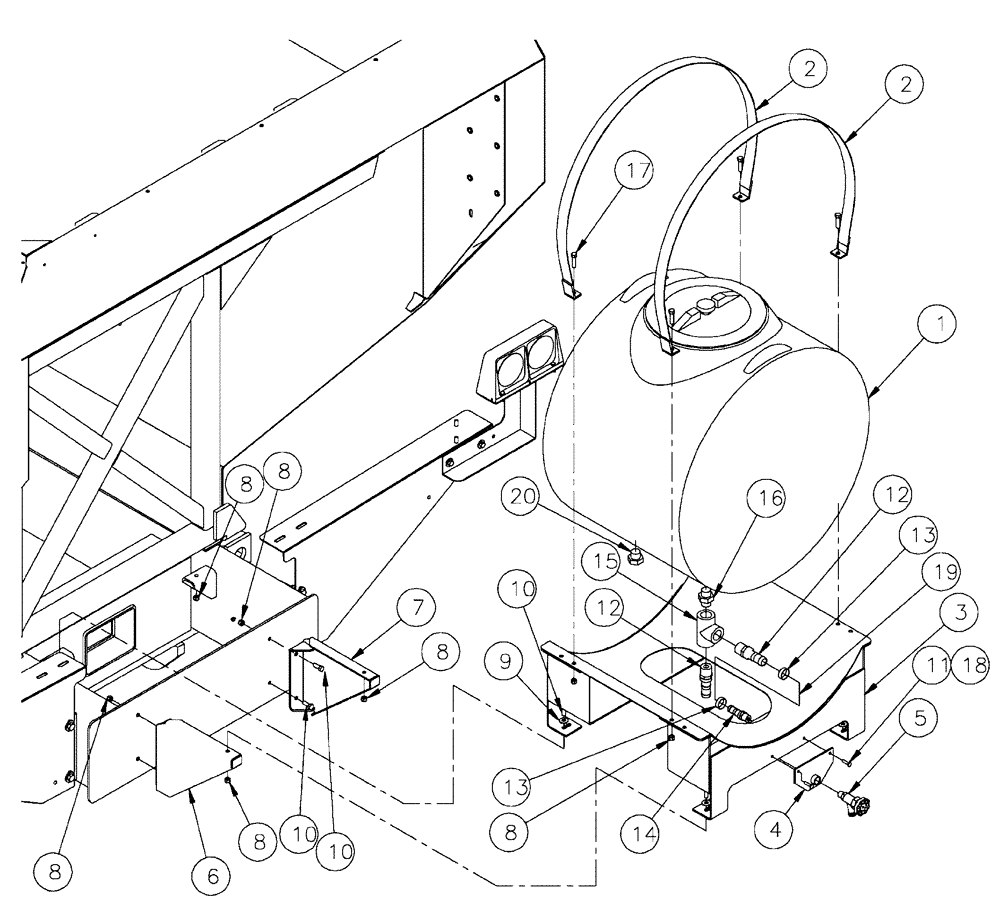

Запчасти Case IH 438 (13-012) - TANK & CRADLE GROUP, PRESSURE WASHER Pressure Washer

1

BN311561

TANK

Poly, 65 Gallon

1шт.

1a

87266426

COVER

Tank, Pressure Washer

1шт.

Service Parts For Ref. 1

1шт.

2

BN312120

STRAP

W/M, 65 Gallon Tank

2шт.

3

BN320719

SUPPORT

Cradle, 65 Gallon Tank

1шт.

4

BN312121

MOUNTING PLATE

W/M, Water Valve

1шт.

5

BN53817

DRAIN VALVE

Plastic 1/2" NPT

1шт.

6

BN320735

SUPPORT

Pressure Washer W/M, LH

1шт.

7

BN320734

SUPPORT

Pressure Washer W/M, RH

1шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

9

BN50146

WASHER,3/8", Stainless

4шт.

10

BN50258

BOLT,3/8"-16 X 1.25", Stainless

8шт.

11

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

2шт.

12

BN73561

FITTING

Barb, 3/4 NPT X 3/4 HS

2шт.

13

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

14

BN322536

ADAPTER,1/2" Male NPT x 3/4" Hose Barb, Poly

1/2" MPT x 3/4" Hose Barb, Poly

1шт.

15

BN73560

TEE

3/4" NPT, Poly

1шт.

16

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

17

BN50263

BOLT,3/8"-16 X 1-3/4", Stainless Steel

4шт.

18

BN55359

LOCK NUT,1/4"-20, SS

2шт.

19

BN53862

EPDM 3/4" ID X 8.5"

1шт.

19a

BN73655

PLUG,1-1/4" Male NPT, Poly

1 & 1/4 NPT Pipe Poly

1шт.
