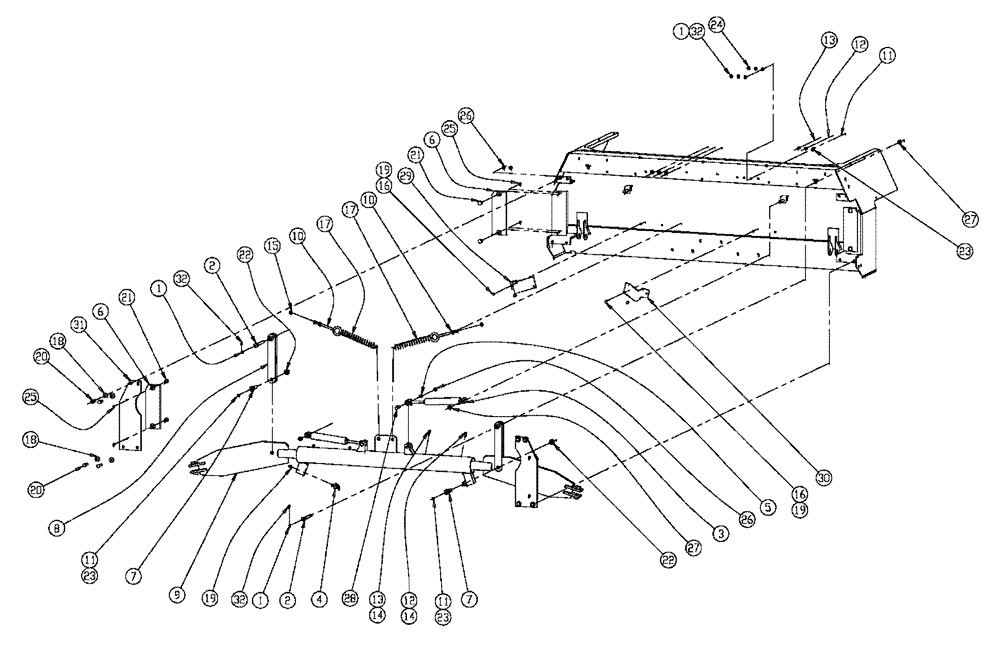

Запчасти Case IH 438 (01-004) - BOOM SWING GROUP Basic Unit

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

8шт.

2

BN15466

BOLT

Grease, 5/8"-11 x 6.0

2шт.

3

BN21565

SHOCK ABSORBER

2шт.

4

BN25232

BUMPER

1.56" Dia - Urethane

2шт.

5

BN29612

BUSHING

5/8" od x 17 ga x 1.31" Long

2шт.

6

BN301598

WEAR PLATE

Boomswing, .75

4шт.

7

BN311095

BOLT

Grease, 3/4 - 10 X 3

2шт.

8

BN35452

ARM

W/M, Boomswing

2шт.

9

BN35456

BOOM

Swing - Weldment

1шт.

10

BN35463

EYEBOLT

1/2 - 13 UNC X 6

2шт.

11

BN35808

HOSE,0.13" ID x 30.00", SAE 100R7

Grease, 30"

2шт.

12

BN35809

HOSE,0.13" ID x 20.00", SAE 100R7

Grease

2шт.

13

BN35810

HOSE,0.13" ID x 16.00", SAE 100R7

Grease

2шт.

14

BN35811

ADAPTER

45 Degree, Style 2

4шт.

15

BN50071

NUT,1/2"-13, Stainless

4шт.

16

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

17

BN50542

SPRING

2.21 OD x 14.312 Wire

2шт.

18

BN50595

WASHER,1/2", Stainless

8шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

6шт.

20

BN50786

BOLT,1/2"-13 x 2", Stainless

8шт.

21

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

8шт.

22

280375

NUT,3/4"-10, GC

2шт.

23

BN53569

ELBOW

Grease, 1/8 NPT BH90

8шт.

24

BN53570

BHD LOCK NUT

6шт.

25

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

26

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

10шт.

27

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

4шт.

28

BN55368

BOLT,1/2"-13 X 2-1/2", Stainless Steel

2шт.

29

BN67139

BUMPER

Stop, FA, RH

1шт.

30

BN67140

COVER

Bumper Stop, FA, LH

1шт.

31

BN68815

PLATE

Bolt On Boomswing

2шт.

32

BN69951

CAP

Grease Cap

8шт.
