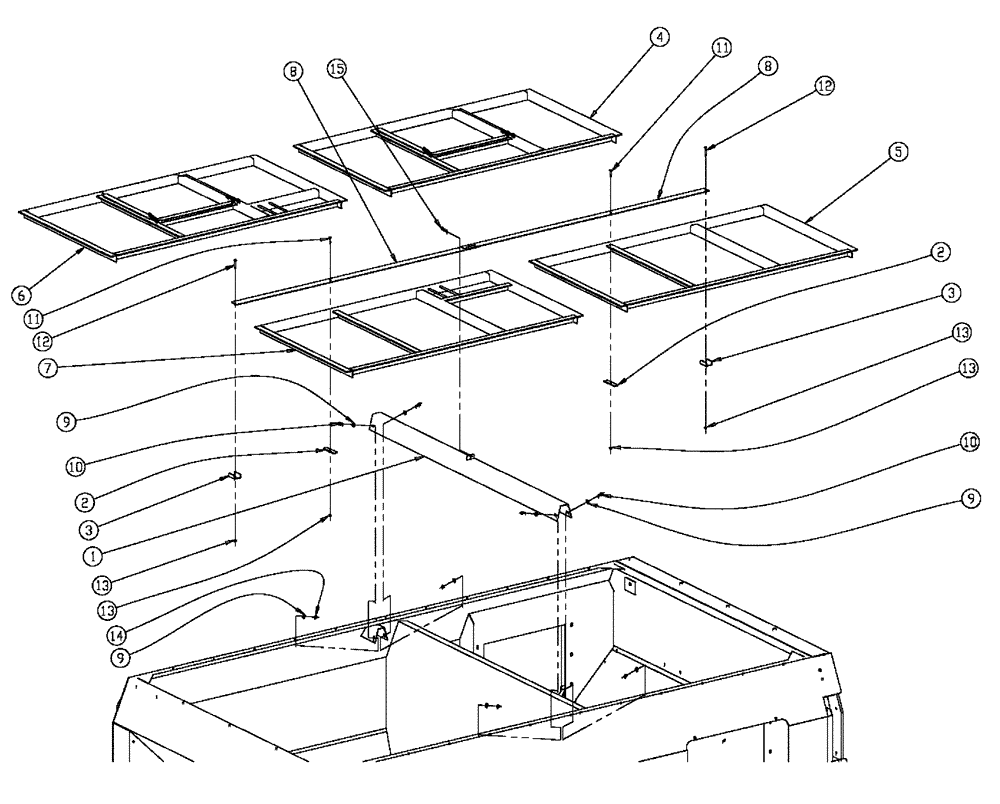

Запчасти Case IH 438 (01-003) - MAIN BOX SCREEN GROUP Basic Unit

1

BN15199

SUPPORT

Screen, Center

1шт.

2

BN21803

MOUNTING PLATE

10 ga 409 1.0 x 4.0

2шт.

3

BN21809

HOLDER

Tie Down, 10 GA 409 2.0 x 3.0

2шт.

4

BN311063

SCREEN

W/M, Flex, LH Front

1шт.

5

BN311064

SCREEN

W/M, Flex, RH Front

1шт.

6

BN311065

SCREEN

W/M, Flex, LH Rear

1шт.

7

BN311066

SCREEN

W/M, Flex, RH Rear

1шт.

8

BN35896

COVER

Center, Screen

2шт.

9

BN50142

WASHER,5/16", Stainless Steel

8шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

11

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

2шт.

12

BN50681

BOLT,Hex, 1/4" - 20 x 1-1/2", SST

1/4 - 20 X 1.5, HH, SS

2шт.

13

BN55359

LOCK NUT,1/4"-20, SS

4шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

15

BN71007

CLIP,3/16" Hairpin

Hairpin - 3/16"#8

1шт.
