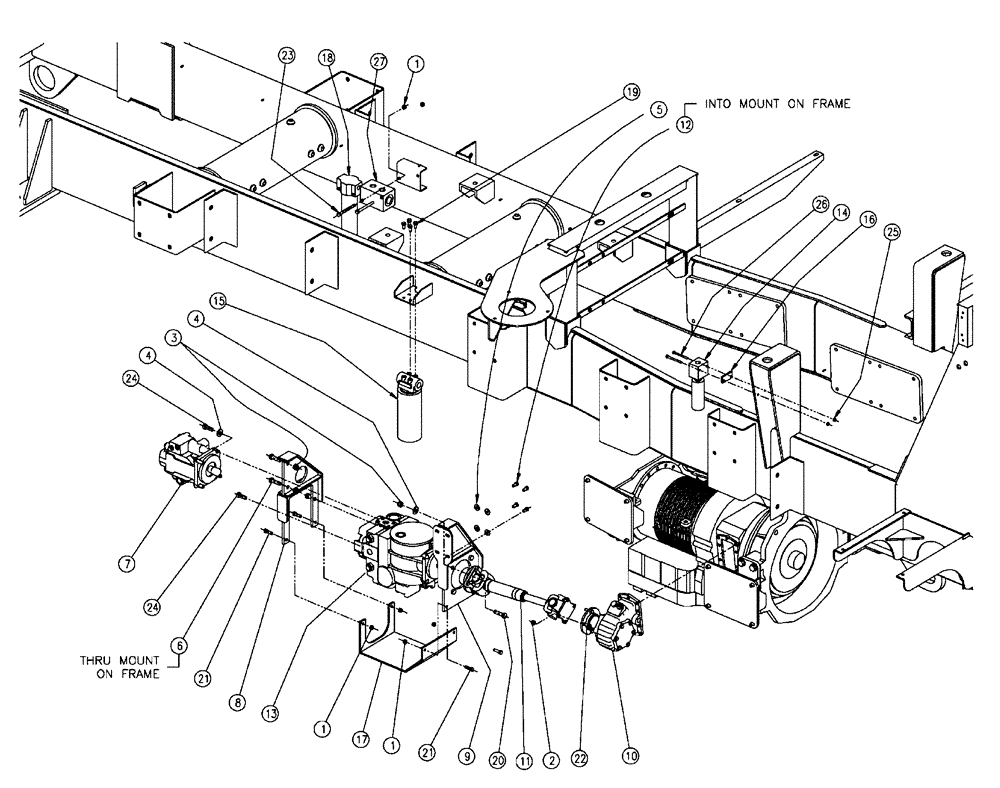

Запчасти Case IH 438 (06-007) - PUMP GROUP, FLEX, 3 WHEEL Hydraulic Plumbing

1

88902

NUT,3/8"-16

6шт.

2

280980

NUT,7/16"-14, GC

4шт.

3

86992215

LOCK NUT,1/2"-13, GC

6шт.

4

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

5

BN2292371

NUT

3/8, FW, G8

4шт.

6

BN300169

SCREW,1/2" - 13 x 1 3/4"

1/2"-13 x 1.75, HH, G8

2шт.

7

86986504

PUMP

Pressure Comp-60 cc

1шт.

See Fig. 07-006

1шт.

8

BN304141

MOUNTING PLATE

Pump, Rear, 3JD

1шт.

9

BN304142

MOUNTING PLATE

Pump, Front, 3JD

1шт.

10

BN304157

GEARBOX

RH W/1.5" 10 Spline

1шт.

10

BN304157R

REMAN-PTO GEARBOX A.

438 FLEX-AIR APPLICATOR, 3 WHEEL, RH (3/03-10/03)

1шт.

10

BN304157C

CORE-PTO GEARBOX A.

Return Number

1шт.

11

BN304158

DRIVEN SHAFT

Driveline, 3 Wheel

1шт.

12

BN305106

SCREW,3/8" - 24 x 3/4", Gr 8

3/8 - 24 X .75, HH, G8

4шт.

13

BN309564

PUMP

75Cc, 90 Series, Auxiliary C

1шт.

See Fig. 07-009

1шт.

14

84155893

VALVE POPPET

48 SEC, Motorized Relief

1шт.

15

BN309664

FILTER

Hydraulic, Oil, Medium Pressure

1шт.

16

BN310240

SPACER

Remote Servo

1шт.

17

BN313827

GUARD

Pumps, Flex, 3 WHLR

1шт.

18

BN35690

FILTER

Fairy - Arlon, HI P

1шт.

See Fig. 07-016

1шт.

19

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

20

BN50378

BOLT

1/2 - 13 X 2, HH, 8, BK

4шт.

21

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

22

413-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5

4шт.

23

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

2шт.

24

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

6шт.

25

BN55359

LOCK NUT,1/4"-20, SS

2шт.

26

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

27

BN67505

MANIFOLD

Meter Filter

1шт.
