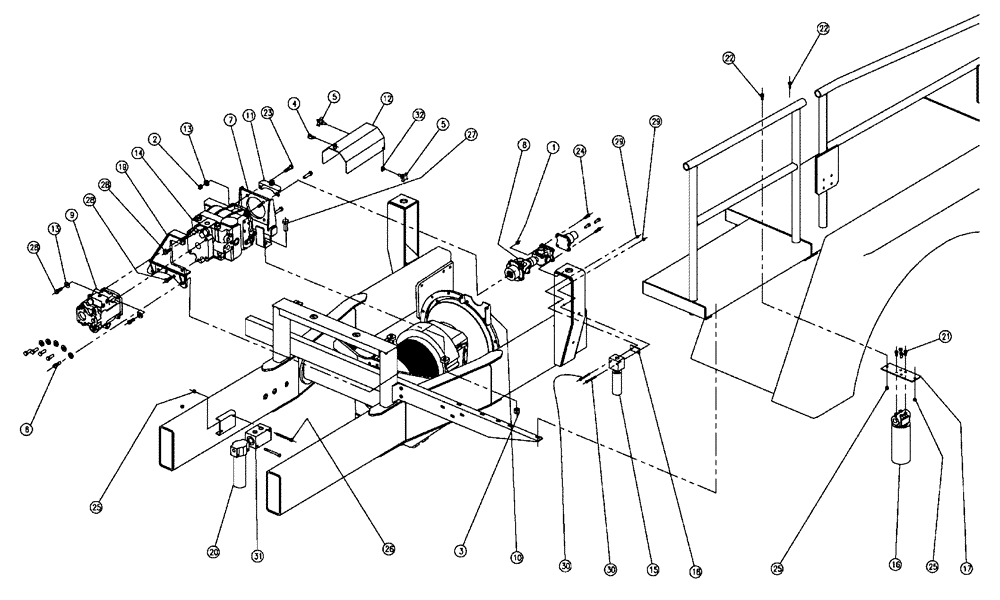

Запчасти Case IH 438 (06-001) - PUMP GROUP, FLEX, 4375 Hydraulic Plumbing

1

280980

NUT,7/16"-14, GC

4шт.

2

86992215

LOCK NUT,1/2"-13, GC

4шт.

3

280375

NUT,3/4"-10, GC

2шт.

4

BN15717

PIN

Snap, 1/4" x 1 3/4"

1шт.

5

BN29393

KNOB

3/8-16 x .75 Malestud

2шт.

6

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

5шт.

7

BN302794

BRACKET, SUPPORTING

Front Mount, 90+45

1шт.

8

NSS

NOT SOLD SEPARAT

Driveline, 1350, SC, 14T, PF

1шт.

See Fig. 08-001

1шт.

9

86986504

PUMP

Pressure Comp-60 cc

1шт.

See Fig. 07-006

1шт.

10

BN305669

BRACKET, SUPPORTING

Mount, PTO Shield

1шт.

11

BN305672

MOUNTING PLATE

Mount W/M, PTO Shield, Pivot

1шт.

12

BN305673

COVER

W/M, PTO Shield

1шт.

13

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

8шт.

14

BN309564

PUMP

75Cc, 90 Series, Auxiliary C

1шт.

See Fig. 07-009

1шт.

15

84155893

VALVE POPPET

48 SEC, Motorized Relief

1шт.

16

BN309664

FILTER

Hydraulic, Oil, Medium Pressure

1шт.

17

BN310239

MOUNTING PLATE

Remote Filter

1шт.

18

BN310240

SPACER

Remote Servo

1шт.

19

BN310706

MOUNTING PLATE

Rear, 90+45

1шт.

20

BN35690

FILTER

Fairy - Arlon, HI P

1шт.

See Fig. 07-016

1шт.

21

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

22

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

23

BN50378

BOLT

1/2 - 13 X 2, HH, 8, BK

4шт.

24

413-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5

4шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

26

80012047

BOLT,Hex, 3/8" - 16 x 4", Grade 5

2шт.

27

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

28

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

6шт.

29

BN55359

LOCK NUT,1/4"-20, SS

2шт.

30

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

31

BN67505

MANIFOLD

Meter Filter

1шт.

32

BN68832

CLIP

J - Type, 3/8 - 16 UNC

2шт.
