(07-015) - VALVE BLOCK, TRIPLE BIN

Запчасти Case IH 438 (07-015) - VALVE BLOCK, TRIPLE BIN Hydraulic Components

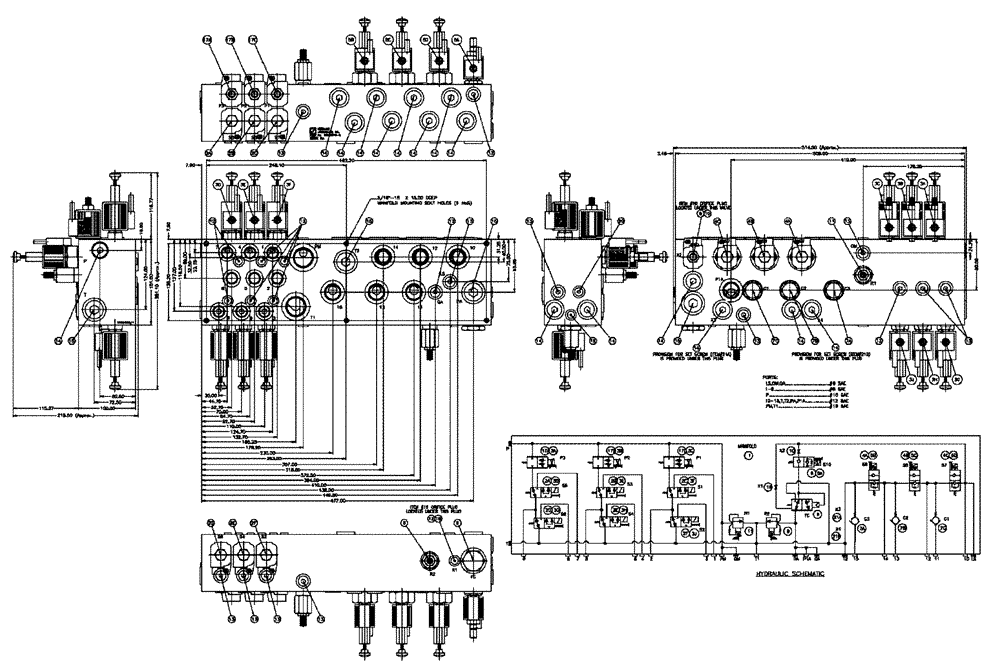

Схема запчастей Case IH 438 - (07-015) - VALVE BLOCK, TRIPLE BIN Hydraulic Components
4b
14
2d
2f
7a
1
3f
12
14
13
10
13
2e
2f
17c
7c
3g
3b
17b
5c
12
12
13
3e
14
21b
3g
14
14
14
12
11
4b
17c
2c
14
13
14
5c
5d
3b
2b
2c
13
2a
7b
4a
2b
15
13
5b
2d
7b
8
5
3a
21a
9
16
5a
11
17b
4c
4c
3h
13
3j
3a
13
7c
14
3h
5d
3d
13
8
7c
3c
16
2a
16
5a
14
14
3e
14
15
15
5b
14
14
20
14
17a
13
8
3f
13
8
13
2e
7a
17a
3d
4a
3j
3c
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266993

BLOCK

M/C

1шт.

2

BN303849

SOLENOID VALVE

2/3 Way

6шт.

3

BN300307

COIL

12 VDC, Traction

9шт.

4

BN303851

SOLENOID VALVE

2/2 Way

3шт.

5

BN300306

COIL

12VDC, Shift With Male Packard Connector

4шт.

6

BN303853

HYDRAULIC VALVE

2/2 Way, Unloader

1шт.

7

BN324995

CHECK VALVE

30 PSI

3шт.

8

BN303855

VALVE PRESSURE RELIE

2700 PSI

1шт.

9

BN303857

HYDRAULIC VALVE

Flow Control

1шт.

10

BN303859

PLUG

Orfice, .242"

1шт.

11

87266994

VALVE PRESSURE RELIE

2175 psi

1шт.

12

86529630

PLUG,Hex Soc, 3/8"-24 ORB

8шт.

13

9625178

PLUG,9/16" - 18 ORB

14шт.

14

86625138

PLUG,7/18" - 14

15шт.

15

9841223

PLUG,1-1/16" - 12 ORB

4шт.

16

BN303865

PLUG

Orifice, .020"

1шт.

17

87270622

HYDRAULIC VALVE

Prop Flow Control

3шт.

20

278548

PLUG,Hex, 7/16"-20 ORB

1шт.
