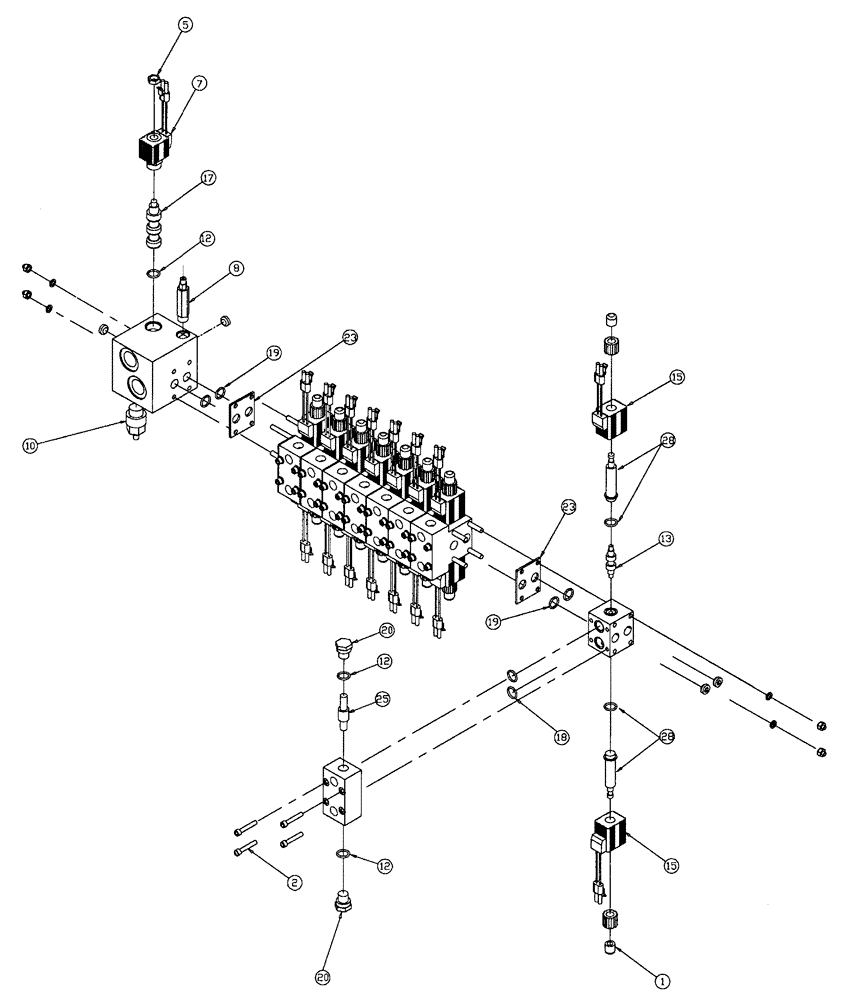

Запчасти Case IH 438 (07-014) - VALVE-WATERMAN 8 BANK, DOUBLE BIN W/AUGER & TRIPLE BIN Hydraulic Components

0

86986498

VALVE

Control 8 Bank CR

1шт.

Includes Refs. 1 - 28

1шт.

1

86986509

CAP

vinyl, valve bank

16шт.

2

86986510

SCREW,Hex, 1/4" - 20 x 1 3/4"

1/4-20 X 1.75, SHCS, SS

32шт.

5

BN98218

NUT

Unloader Valve #29345

1шт.

7

BN318090

COIL

12V DC Double Lead

1шт.

8

BN318088

VALVE PRESSURE RELIE

1шт.

10

BN318087

CONTROL

Flow

1шт.

12

BN98219

SEAL KIT

For Cartridge

16шт.

13

BN98220

SPOOL

Waterman Valve #29345

8шт.

15

BN98222

COIL

W/Wire Lead & Pack-End

16шт.

17

BN318091

SOLENOID VALVE

1шт.

18

BN98225

O-RING

Stacking Valve #29345

16шт.

19

BN98226

O-RING

Sandwich Valve #29345

16шт.

20

BN300970

CHECK VALVE,3/4" - 16

100 Lb. Wtrmn

16шт.

23

86986508

PLATE

Backing, Anodized

8шт.

25

BN98679

CHECK VALVE

Piston, Dual, 29345

8шт.

28

BN318147

TUBE

Assembly

16шт.
