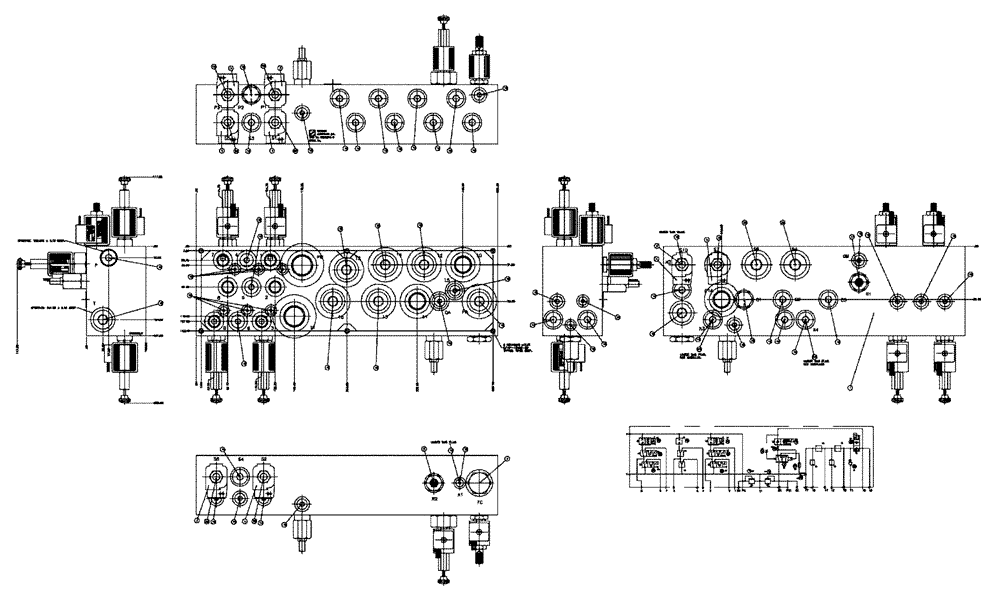

Запчасти Case IH 438 (07-012) - VALVE BLOCK, DOUBLE BIN W/O AUGER Hydraulic Components

0

87271572

HYDRAULIC VALVE

Block, Double

1шт.

1

87266993

BLOCK

M/C

1шт.

2

BN303849

SOLENOID VALVE

2/3 Way

4шт.

3

BN300307

COIL

12 VDC, Traction

6шт.

4

BN303851

SOLENOID VALVE

2/2 Way

1шт.

5

BN300306

COIL

12VDC, Shift With Male Packard Connector

2шт.

6

BN303853

HYDRAULIC VALVE

2/2 Way, Unloader

1шт.

7

BN324995

CHECK VALVE

30 PSI

1шт.

8

BN303855

VALVE PRESSURE RELIE

2700 PSI

1шт.

9

BN303857

HYDRAULIC VALVE

Flow Control

1шт.

10

BN303859

PLUG

Orfice, .242"

1шт.

11

87266994

VALVE PRESSURE RELIE

2175 psi

1шт.

12

86529630

PLUG,Hex Soc, 3/8"-24 ORB

8шт.

13

9625178

PLUG,9/16" - 18 ORB

14шт.

14

86625138

PLUG,7/18" - 14

19шт.

15

9841223

PLUG,1-1/16" - 12 ORB

8шт.

16

BN303865

PLUG

Orifice, .020"

1шт.

18

BN303867

PLUG

Cavity

1шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

3шт.

20

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

22

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

2шт.
