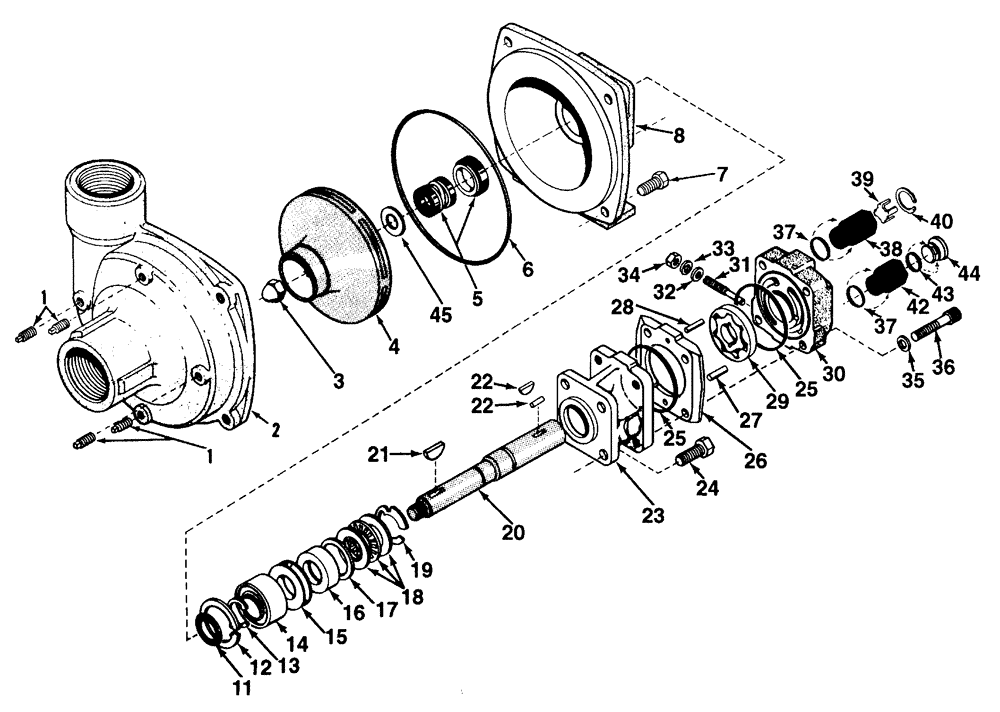

Запчасти Case IH 438 (07-007) - PUMP-HYPRO 2” INLET, 9304C-HM1C Hydraulic Components
№
Артикул
Название
Примечание
Количество
0
BN312974
REPAIR KIT
Pump
1шт.
Service Parts For Ref. 1
1шт.
Includes Refs. 5, 6, And 45 (Seal And Geroter Kits)
1шт.
0
BN312973
SEAL KIT
Shaft
1шт.
Includes Refs. 14, 16, 32, 33 And 2 Each Of 25 And 37 (Seal And Geroter Kits)
1шт.
Includes Refs. 25, 26 And 29 (Seal And Geroter Kits)
1шт.
0
BN53771
HYDRAULIC MOTOR
HM1 (Seal & Geroter Kits)
1шт.
1
NSS
NOT SOLD SEPARAT
Drain/Vent Plug (Liquid Pump)
4шт.
2
NSS
NOT SOLD SEPARAT
Pump Casing (Volute) Includes SS Wear Ring (Liquid Pump)
1шт.
3
BN53693
NUT
Impeller #3 (Liquid Pump)
1шт.
4
BN312971
IMPELLER
(Cast Iron) (Liquid Pump)
1шт.
5
NSS
NOT SOLD SEPARAT
Mechanical Seal (Viton) (Liquid Pump)
1шт.
6
NSS
NOT SOLD SEPARAT
O-Ring (Liquid Pump)
1шт.
7
NSS
NOT SOLD SEPARAT
Hex Head Capscrew (Liquid Pump)
4шт.
8
NSS
NOT SOLD SEPARAT
Mounting Flange (Liquid Pump)
1шт.
11
NSS
NOT SOLD SEPARAT
Slinger Ring (Liquid Pump)
1шт.
12
NSS
NOT SOLD SEPARAT
Retaining Ring (Liquid Pump)
1шт.
13
NSS
NOT SOLD SEPARAT
Snap Ring (Liquid Pump)
1шт.
14
NSS
NOT SOLD SEPARAT
Ball Bearing (Liquid Pump)
1шт.
15
NSS
NOT SOLD SEPARAT
Spacer (Liquid Pump)
1шт.
16
NSS
NOT SOLD SEPARAT
Shaft Seal (Liquid Pump)
1шт.
17
NSS
NOT SOLD SEPARAT
Seal Spacer (Liquid Pump)
1шт.
18
NSS
NOT SOLD SEPARAT
Thrust Bearing Assembly (Liquid Pump)
1шт.
18a
NSS
NOT SOLD SEPARAT
Thrust Bearing (Liquid Pump), Foot Note: Parts Of Thrust Bearing Assembly
1шт.
18b
NSS
NOT SOLD SEPARAT
Thrust Bearing Races (Liquid Pump)
2шт.
Parts Of Thrust Bearing Assembly
1шт.
19
NSS
NOT SOLD SEPARAT
Snap Ring (Liquid Pump)
1шт.
20
NSS
NOT SOLD SEPARAT
Shaft (Liquid Pump)
1шт.
21
NSS
NOT SOLD SEPARAT
Woodruff Key (Liquid Pump)
1шт.
22
NSS
NOT SOLD SEPARAT
Roll Pin (Liquid Pump)
1шт.
23
NSS
NOT SOLD SEPARAT
Front Motor Body (Includes Main Bearing) (Liquid Pump)
1шт.
24
NSS
NOT SOLD SEPARAT
Hex Head Capscrew (Liquid Pump)
4шт.
25
NSS
NOT SOLD SEPARAT
O-Ring (Liquid Pump)
2шт.
26
NSS
NOT SOLD SEPARAT
Gerator Housing (Liquid Pump)
1шт.
27
NSS
NOT SOLD SEPARAT
Dowel Pin (Liquid Pump)
1шт.
28
NSS
NOT SOLD SEPARAT
Dowel Pin (Liquid Pump)
1шт.
29
NSS
NOT SOLD SEPARAT
Gerotor (Liquid Pump)
1шт.
30
NSS
NOT SOLD SEPARAT
Motor End Plate (Includes Main Bearing) (Liquid Pump)
1шт.
31
NSS
NOT SOLD SEPARAT
Bypass Adjusting Screw (Liquid Pump)
1шт.
32
NSS
NOT SOLD SEPARAT
Gasket (Liquid Pump)
1шт.
33
NSS
NOT SOLD SEPARAT
Washer (Liquid Pump)
1шт.
34
NSS
NOT SOLD SEPARAT
Lock Nut (Liquid Pump)
1шт.
35
NSS
NOT SOLD SEPARAT
Washer (Liquid Pump)
4шт.
36
NSS
NOT SOLD SEPARAT
Capscrew (Liquid Pump)
4шт.
37
NSS
NOT SOLD SEPARAT
O-Ring (Liquid Pump)
2шт.
38
NSS
NOT SOLD SEPARAT
Tank Port Adapter (Liquid Pump)
1шт.
39
NSS
NOT SOLD SEPARAT
Poppet (Liquid Pump)
1шт.
40
NSS
NOT SOLD SEPARAT
Retaining Ring (Liquid Pump)
1шт.
42
NSS
NOT SOLD SEPARAT
Pressure Port Adapter (Liquid Pump)
1шт.
45
NSS
NOT SOLD SEPARAT
Rubber Gasket (Liquid Pump)
1шт.
46
NSS
NOT SOLD SEPARAT
Washer (Liquid Pump)
1шт.
Выбрано товаров: 52
