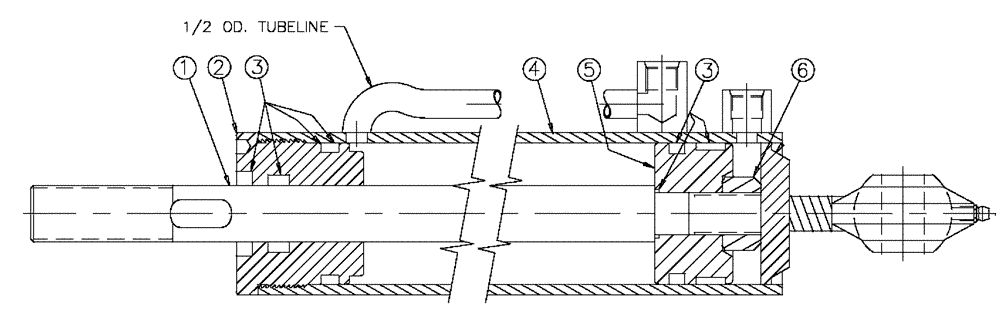

Запчасти Case IH 438 (07-005) - CYLINDER, BOOM TILT Hydraulic Components

0

BN304691

CYLINDER,Double Acting, 25.4mm Rod, 254mm Stroke

Complete

1шт.

1

BN313113

PISTON ROD

1шт.

2

BN67703

End Gland

1шт.

3

BN67704

SEAL KIT

1шт.

4

BN313114

TUBE

Weldment

1шт.

5

BN98651

PISTON

1шт.

6

BN98093

LOCK NUT

3/4 - 16 UNF

1шт.
