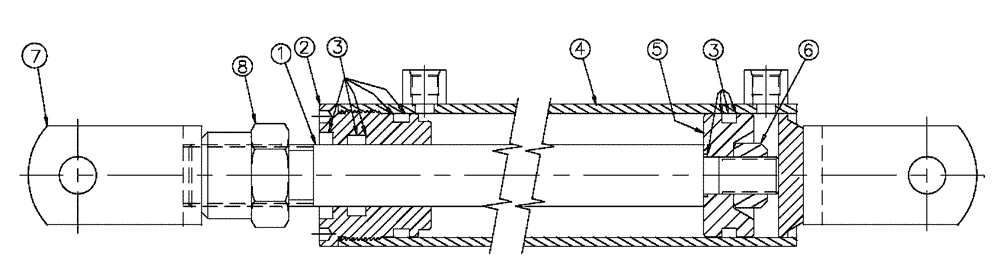

Запчасти Case IH 438 (07-004) - CYLINDER, INNER BOOM FOLD Hydraulic Components

0

BN304690

CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Complete

1шт.

1

BN313145

SHAFT

1шт.

2

BN69786

GLAND

End

1шт.

3

BN98643

SEAL KIT

Hyd. Cylinder (53906)

1шт.

4

BN313146

TUBE

Weldment

1шт.

5

BN98651

PISTON

1шт.

6

BN98093

LOCK NUT

3/4 - 16 UNF

1шт.

7

BN67701

CLEVIS

Threaded, Cyl., 1-1/4" Rod

1шт.

8

BN313147

HEX SOC SCREW,5/16" - 18 x 1 1/4"

5/16 - 18 X 1 1/4 SHCS

1шт.

9

BN313148

NUT

5/16 - 18 UNC

1шт.
