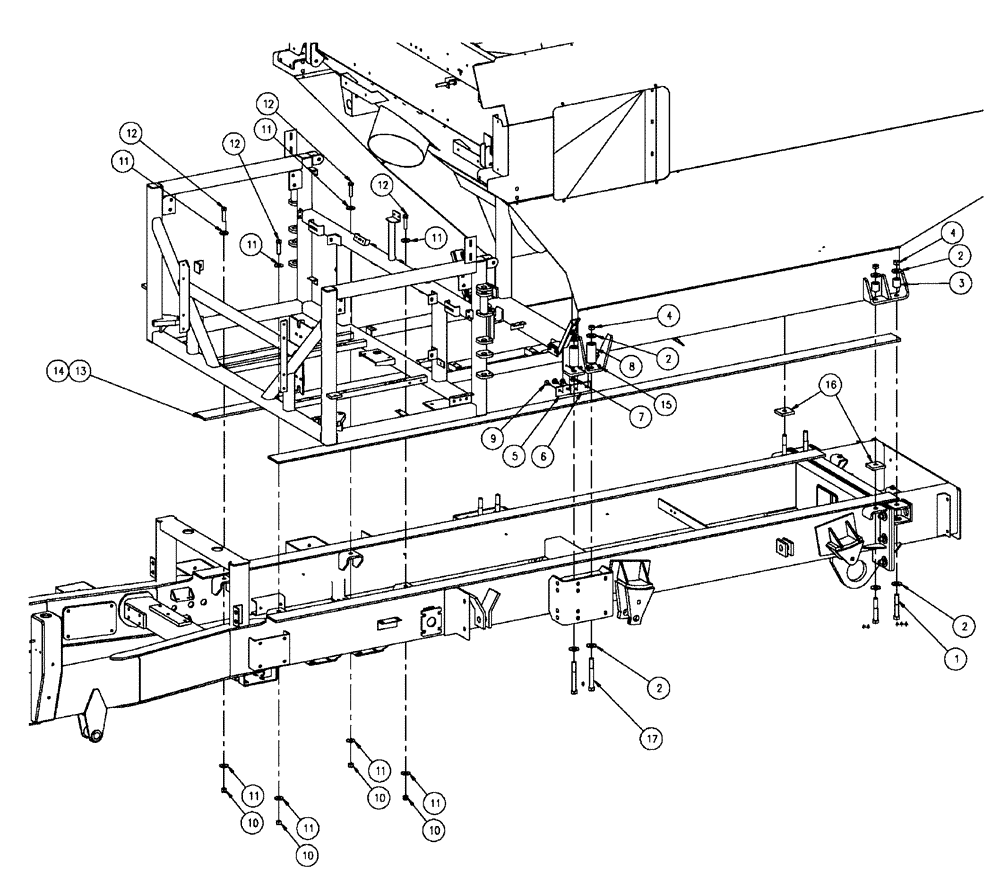

Запчасти Case IH 438 (05-004) - MOUNT GROUP, FLEX-AIR® Extensions & Mount Group

1

86511674

BOLT,Hex, M20 x 120mm, Cl 10.9

4шт.

2

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

16шт.

3

86986163

SPACER

Rear Mount, Flex

4шт.

4

264031

NUT,M20 x 2.5, Cl 10

8шт.

5

86986793

Front

2шт.

6

86986794

Front

2шт.

7

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

8

BN312850

SPRING

1" ID x 4" Lg-Die

4шт.

9

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

4шт.

10

BN313899

LINKAGE

5/8 - 11 Top, G8, PL

4шт.

11

BN247111

WASHER

5/8, G8

8шт.

12

280233

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

4шт.

13

BN313867

BELT,4.00" W x 153.00" L

2шт.

14

BN313897

5 Oz. Tube

2шт.

15

BN55361

NUT,5/16"-18, Nylon, Stainless

8шт.

16

86986785

SPACER

Rear Mount, Flex-Air

2шт.

17

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

4шт.
