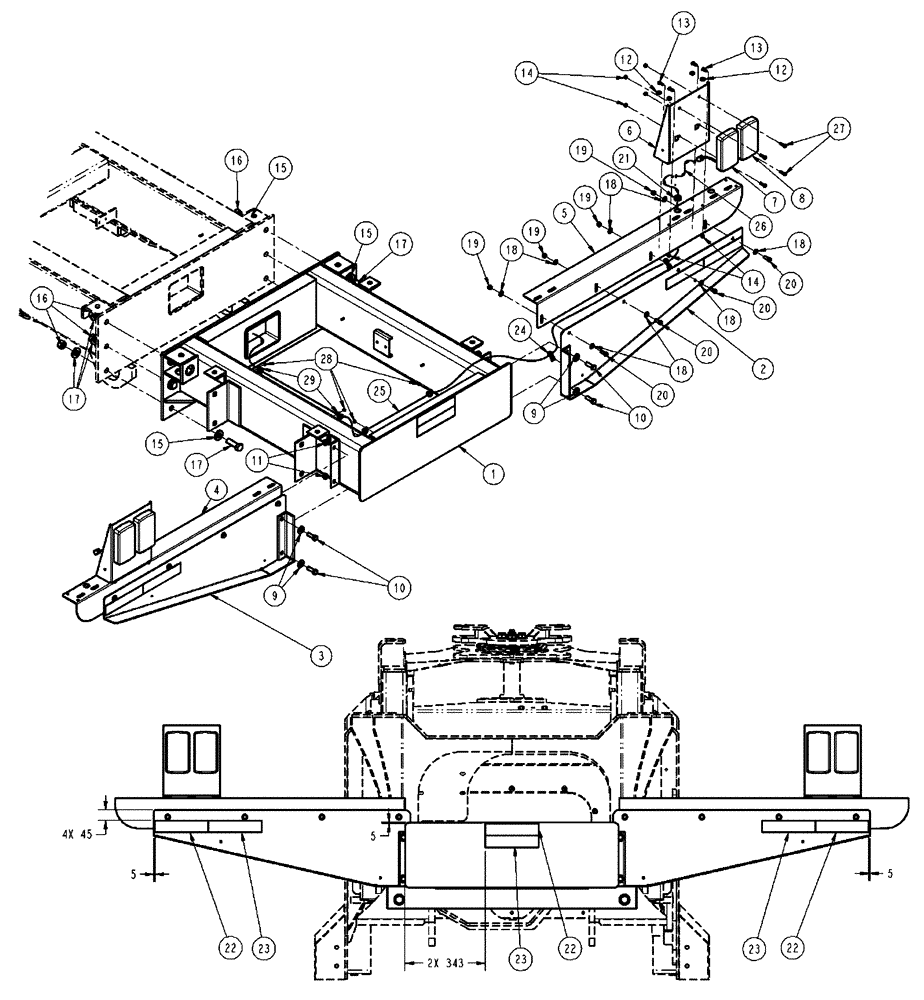

Запчасти Case IH 438 (05-003) - EXTENSION GROUP, 70’, 46” Extensions & Mount Group

1

BN320783

EXTENSION

W/M, 46"

1шт.

2

343765A1

SUPPORT TUBE

tube RH

1шт.

3

343774A1

SUPPORT TUBE

tube LH

1шт.

4

343770A1

BRACKET

46" EXT., 60 - 70' BM, LH

1шт.

5

343776A1

BRACKET

46" EXT., 60 - 70' BM, RH

1шт.

6

343771A1

BRACKET, SUPPORTING

Mount, Tail Light, Flex

2шт.

7

BN325078

LIGHT

Turn, Led Amber, 12V

2шт.

8

BN325077

LAMP, TAIL

LIGHT, TAIL Led Red, 12V

2шт.

9

BN50595

WASHER,1/2", Stainless

4шт.

10

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

11

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

4шт.

12

BN50138

WASHER,1/4", SS

8шт.

13

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

14

BN55359

LOCK NUT,1/4"-20, SS

16шт.

15

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

12шт.

16

264031

NUT,M20 x 2.5, Cl 10

6шт.

17

9843495

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

6шт.

18

BN50146

WASHER,3/8", Stainless

16шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

20

BN50254

BOLT,3/8"-16 x 1", Stainless

8шт.

21

BN85855

GROMMET

Lg, for 1/2" hose

2шт.

22

311863A1

REFLECTOR

Retroreflective Red

3шт.

23

311865A1

REFLECTOR

fluorescent orange

3шт.

24

343777A1

MOUNTING PLATE

tie, push cable

4шт.

25

BN312830

WIRE HARNESS

Rear Lights, Flex

1шт.

26

86986657

WIRE HARNESS

EXT. Led Adaptor

2шт.

27

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

8шт.

28

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

29

BN9990114

STRAP

"EYE TY" 06205 3M

4шт.
