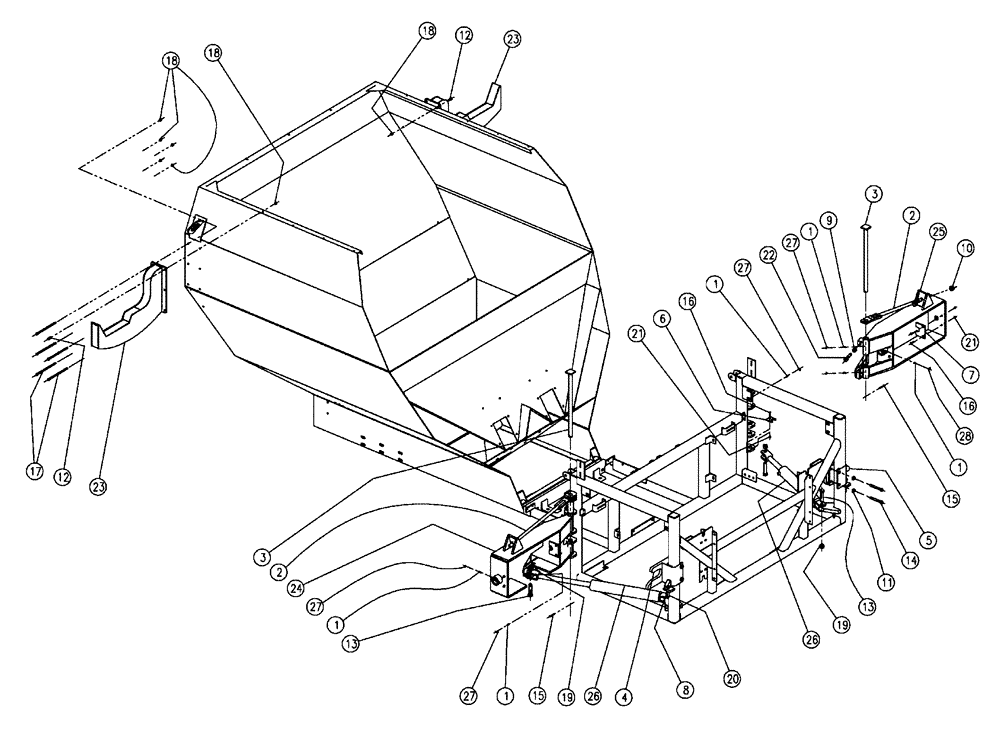

Запчасти Case IH 438 (04-033) - BOOM FOLD PARTS, MID, 70’ Boom Group

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

12шт.

2

BN35642

SUPPORT

W/M - Hinge, Mid

2шт.

3

BN35722

PIN

W/M - Boom, Inner

2шт.

4

BN35882

SUPPORT

W/M, Hinge, Mid, RH

1шт.

5

BN35883

SUPPORT

W/M, Hinge, Mid, LH

1шт.

6

BN35983

SPACER

Door Hinge, 7 GA

6шт.

6

BN35984

SPACER

Door Hinge, 10 GA

3шт.

6

BN35985

SPACER

Door Hinge, 12 GA

4шт.

7

342683A1

SPACER

boom, 14 GA

3шт.

7

BN35990

SPACER

Boom, 7 GA

3шт.

7

BN35991

SPACER

Boom, 10GA

3шт.

7

BN35992

SPACER

Boom, 12 GA

3шт.

8

BN50071

NUT,1/2"-13, Stainless

2шт.

9

BN50082

JAM NUT

5/8 - 11 HEX JAM

2шт.

11

BN50156

LOCK WASHER

5/8 Spring Lock

4шт.

12

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

14

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

4шт.

15

BN50600

COTTER PIN

3/16" X 1 & 1/2"

2шт.

16

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4 - 20 X 1.25, HH, SS

14шт.

17

280505

BOLT,Hex, 3/8"-16 x 7 1/2", G5

10шт.

18

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

19

280375

NUT,3/4"-10, GC

4шт.

20

BN55347

BOLT

1/2-13 X 3, Stainless Steel, Tap

2шт.

21

BN55359

LOCK NUT,1/4"-20, SS

14шт.

22

BN305447

SCREW,5/8" - 11 x 3", Gr 8

5/8 - 11 x 3, HHFT, G8

2шт.

23

343757A1

SUPPORT

cradle, 70' boom

2шт.

24

BN65724

HINGE

W/M, Boom, Mid, RH

1шт.

25

BN65725

HINGE

W/M, Boom, Mid, LH

1шт.

26

NSS

NOT SOLD SEPARAT

Cylinder, 2.5 X 16, SAE Ports, See Fig 07-004

2шт.

27

BN69951

CAP

Grease

12шт.
