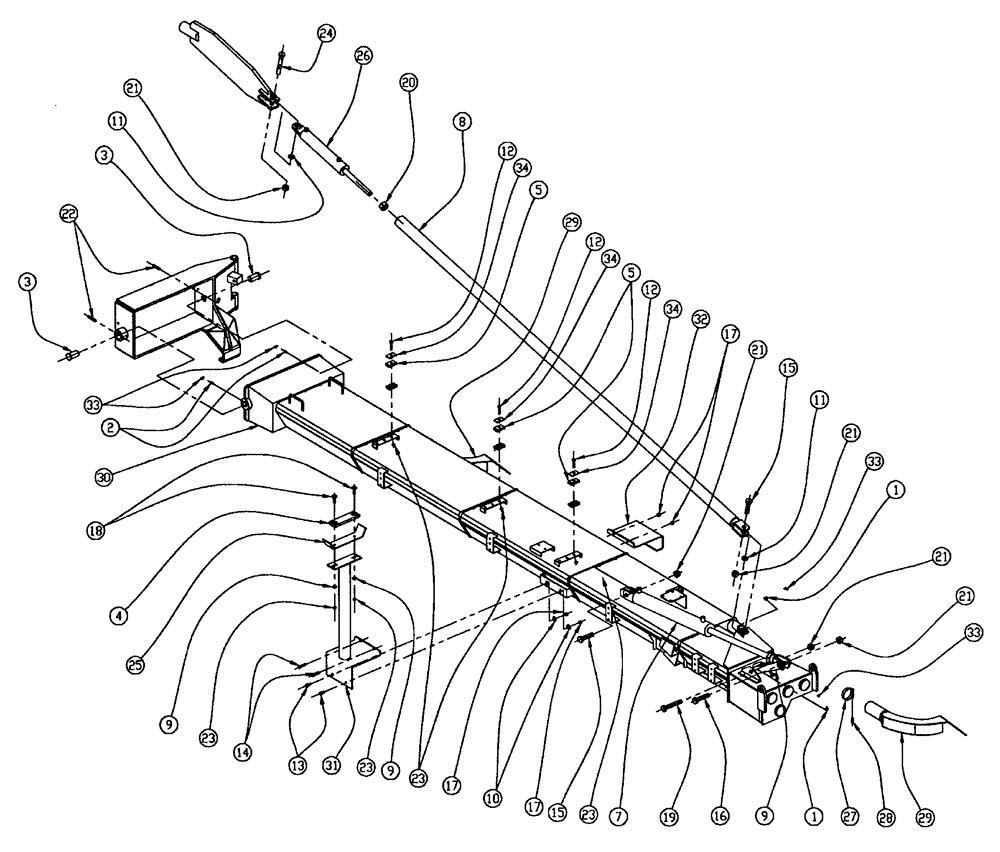

Запчасти Case IH 438 (04-026) - BOOM GROUP, 2.5, INNER, LH Boom Group

1

BN10057

LUBE NIPPLE,1/4"-28 x 90

2шт.

2

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

2шт.

3

BN15256

PIN,31.75mm OD x 63.5mm L

1.25" Dia x 2.50"

2шт.

3

BN65661

PIN,31.75mm OD x 66.8mm L

1.50 DIA. x 2.88

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

1шт.

5

BN29779

CLAMP

Dual, 1/2" Tube

3шт.

6

BN35558

ARM

W/M, Control Link

1шт.

7

NSS

NOT SOLD SEPARAT

Cylinder, 2.5 X 20, SAE Ports, See Fig 07-003

1шт.

8

BN35892

ARM

W/M - Suspension

1шт.

9

BN50141

WASHER

5/16, FW, G5

2шт.

10

BN50146

WASHER,3/8", Stainless

2шт.

11

BN50178

WASHER

1.25 OD X .75 ID X 10 GA

2шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

3шт.

13

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

14

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

2шт.

15

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

16

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

1шт.

17

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

18

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

2шт.

19

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

1шт.

20

425-1516

JAM NUT,Jam, 1"-14, G5

1шт.

21

280375

NUT,3/4"-10, GC

5шт.

22

BN55198

ROLL PIN

3/8 X 2 1/2, SS

2шт.

23

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.

24

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

25

BN65473

SUPPORT

Boom Tip

1шт.

26

NSS

NOT SOLD SEPARAT

Cylinder, 2.5 X 10, SAE Ports, See Fig 07-004

1шт.

27

87271751

CLAMP

Hi-Torque

4шт.

28

BN68086

CAP

RND, Rubber, .25 ID x 1.00

4шт.

29

BN325678

DEFLECTOR

2.5, RH, See Fig 04-028

4шт.

30

BN69194

BOOM

W/M, Inner, 2.50, RH

1шт.

31

BN69278

SUPPORT

Tip - Over Support W/M

1шт.

32

BN69280

SUPPORT

Bracket, Tip - Over

1шт.

33

BN69951

CAP

Grease

4шт.
